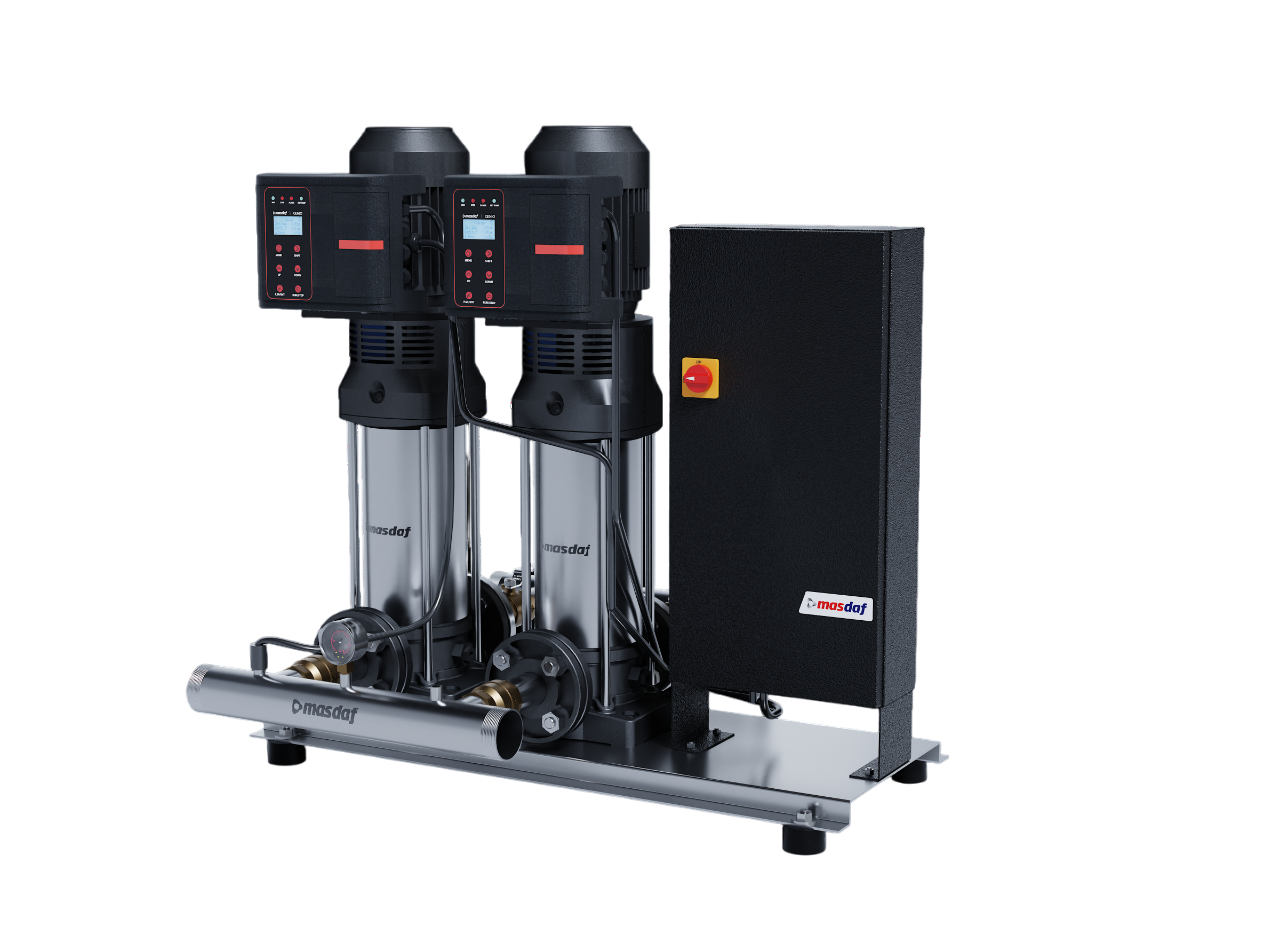

High-Pressure Stainless Steel Booster Set with Frequency Driver
sectors.title
The pumps used in HDSV GENiO type water pressure boosters are multistage stainless steel centrifugal pumps with vertical shaft and frequency inverter on-motor.
- HDSV GENiO type water pressure boosters can be manufactured in the form of one, two, three or four pumps according to flow rate need.
- Water pressure boosters can be operated automatically or manually. Water pressure boosters should be automatically operated as long as there is no compulsory case.
- The set is supplied with float switch that regulates dry run protection.
- During first operation of water pressure booster system, the suction collector should be filled with water and the air of the system should be released.
- System comprised of a Vertical Multistage Stainless Pump, on-motor inverter, a chassis, a collector and accessories
- Easy mounting of the frequency inverter on the motor
- Besides the compact structure of the inverter integrated into the system, its usage in smart applications
- Pump inlets and outlets that are on the same axis
- Water leak detection and dry run protection
- Clockwise turning of the pump when viewed from the motor side
- High resistance against operation without water
- System control and backup with dual communication (RS485 & CAN) support
- Ability to control two pumps with a single driver
Flow Range4x(1 – 120) m³/h
Pressure Range10 – 170 m
Speed Range3000 rpm
Suction Flange Diameter11/4” … DN250
Discharge Flange Diameter11/4” … DN250
Temperature Range0 – 60 °C
