”Smartselect Pump Finder”, developed with an intuitive operating concept and a user-friendly interface according to user demands, serves as a central part of the sales process for selecting and configuring centrifugal pumps. Due to the smart database system of Smartselect, which is designed to meet the requirements of modern information technologies, enabling the visualisation and utilisation of all product-specific data throughout the sales process. The selection outputs and the prepared offer can be sent directly via email, which saves time.
The Smartselect programme is accessible here.ASP/VSP
products.detail.productType

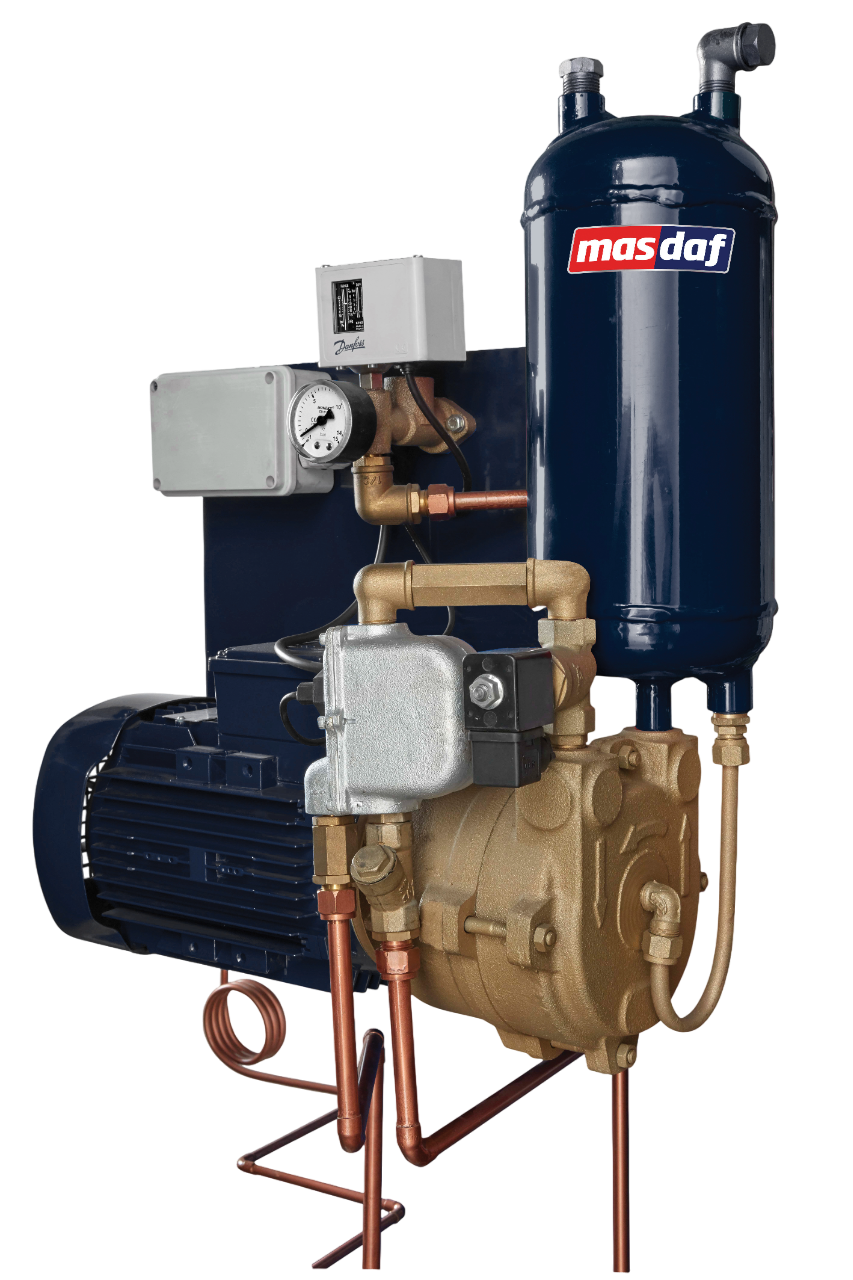

Automatic Self-Priming Systems
sectors.title
- Automatic suction system with ejector working with compressed air
- Structure designed for installations that require suction on the first move
- Guaranteed and safe suction ability
- A vacuum ejector that is activated if the suction is interrupted for any reason and provides suction again
- Physically and chemically resistant to many fluids, including seawater
- Fluids with no particulates
- Systems that are not suitable for dry operation
- Fluids with gases
Operating Voltage24 V – 50/60 Hz
Protection ClassIP 54
Motor Power1.5 kW
Level Relay PowerMax. 100 VA
Nominal PressurePN 10
Suction Capacity300 nl/m
Max. Suction Depth6 m
Service Water Tank4 Lt.
Pump Selection Program
