What is a Centrifugal Pump? Operating Principle of a Centrifugal Pump

A pump is a mechanism used to transfer liquids. Each pump operates on a different principle. The question “What is a centrifugal pump?” can be answered as: it is a type of pump that converts kinetic energy into hydrodynamic energy to pressurize the liquid. This type of pump, which has a wide range of applications, can be used in various areas such as water discharge and agricultural irrigation.
 <h2>What is a Centrifugal Pump? </h2>A centrifugal pump consists of a simple mechanism. The pump, which has an impeller structure, receives mechanical energy from an electric motor, diesel engine, or turbine driver. It converts the mechanical energy it receives into kinetic energy through the impeller or diffuser inside. The main components of the pump are the diffuser, volute, and impeller. The volute is the area where the water discharged from the impeller is collected. The impeller, which has curved blades, is the part that rotates the fluid and converts mechanical energy into kinetic energy. The diffuser is generally located between the impeller and the volute. The ring-shaped diffuser allows a small portion of the high kinetic energy of the water coming from the impeller to be converted into pressure energy. The stuffing box inside the pump is located between the casing and the shaft, preventing leakage. Thanks to its simple mechanism, this pump type is frequently preferred and has a wide range of applications. The question “Where are centrifugal pumps used?” can be answered with the following areas:
<ul><li>Agricultural irrigation
</li><li>Booster systems
</li><li>Wastewater treatment
</li><li>Paper industry
</li><li>Fuel stations
</li></ul> <h2>Operating Principle of a Centrifugal Pump </h2>The general operating principle of a centrifugal pump is based on generating pressure. Inside the pump, there is an impeller. As the impeller rotates, a vacuum is created, drawing the liquid into the pump. The drawn liquid causes the impeller to spin rapidly, and as it does, the water inside is discharged outward. This process occurs due to centrifugal force. The impeller mechanism generates centrifugal force as it rotates at high speed. Because of this force, the liquid moves toward the discharge outlet of the pump, creating pressure. Explaining it by its parts: the liquid enters through the suction part and is directed to the center of the impeller. As the suction area of the impeller creates a vacuum, the liquid moves between the impeller blades. The liquid between the blades gains tangential velocity and moves toward the discharge side. While moving, it generates kinetic energy. The kinetic energy produced by the liquid is converted into pressure energy in the volute section of the pump. Therefore, a centrifugal pump operates on a pressure-generation system.

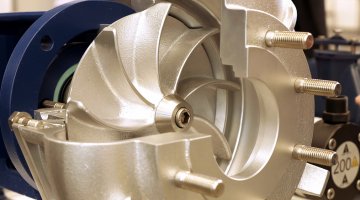

 <h2>Types of Centrifugal Pumps</h2> Pumps vary according to their features. Among centrifugal pump types, there are self-priming, horizontal, vertical, and standard ones. The standard centrifugal pump has a classic mechanism without additional features. Self-priming centrifugal pumps offer ease of operation — placing the suction line inside the well is sufficient for them to operate. Horizontal centrifugal pumps are used when liquids need to be transferred quickly. This pump type, which has minimal leakage and maximum efficiency, is also considered environmentally friendly. When a centrifugal pump fan has open impeller technology, fluid transfer becomes easier. Open impeller technology is commonly used in horizontal types. Another type is the vertical pump. Vertical pumps are submerged in tanks and used in a fixed position. In terms of flow type, they are classified as radial, axial, and mixed-flow pumps. Axial pumps have high flow rates. Water enters the pump radially and exits axially, making this type suitable for high flow applications. The radial type, also known as a centrifugal pump, takes the fluid axially into the center and discharges it radially. In mixed-flow pumps, water enters axially and exits between the axial and radial directions. Another classification is based on the number of stages. A pump with only one impeller is called a single-stage pump. Multi-stage pumps contain more than one impeller.

Centrifugal pumps are categorized based on their application areas, design, and required pressure levels. Below are the most common types of centrifugal pumps:
 <ul><li>Horizontal Multistage Centrifugal Pump: Used in high-pressure applications. Common areas include potable water networks, water distribution systems, high-rise buildings, and industrial pressurization processes.
</li><li>Vertical Multistage Centrifugal Pump: Suitable for confined spaces requiring high pressure. Common areas include potable water networks, water distribution systems, high-rise buildings, and industrial pressurization processes.
</li><li>End-Suction Pumps: One of the most common centrifugal pump types. Commonly used in water supply and transfer stations, irrigation, sprinkling, drainage, industrial, and domestic liquid transfer applications.</li><li>Submersible Pumps: Operate underwater to transfer liquids. Commonly used in water treatment plants, for transferring sludge or wastewater containing solid particles, and in sewage transport.
</li><li>Inline Type Pumps: Provide a compact solution on pipelines. Commonly used in heating and cooling systems, hot or cold water circulation, swimming pool water circulation, and fresh or seawater pumping on ships.
</li><li>Circulation Pumps: Typically preferred in heating and cooling systems. Commonly used for hot and cold water transfer in domestic applications.</li><li>Self-Priming Pumps: Can operate without the need to discharge air. Commonly preferred in transfer processes where the suction level is high.
</li><li>Double Suction Pumps: Used in high-flow industrial systems and infrastructure applications. Commonly used in water treatment and processing, pumping stations, and water distribution networks.</li><li>Booster Systems: Used to pressurize water in buildings and facilities. Installed as single or multi-pump systems to meet water needs of various facilities.
</li><li>Fire Pumps and Sets: Provide a reliable solution for fire suppression systems in emergency situations. Commonly used in hospitals, business centers, schools, warehouses, airports, and other commercial and public buildings.</li></ul> <h2>Advantages of a Centrifugal Pump&nbsp;</h2>The widespread use of centrifugal pumps is due to the advantages they offer. With a simple mechanism, the pump stands out for its economical structure. The price of centrifugal pumps varies depending on their technical specifications and model. One of their main advantages is energy efficiency — the mechanism consumes only as much energy as needed, making it cost-effective in both product and electricity use. Due to their compact design, they can be installed in confined spaces. They require minimal maintenance and offer long service life.
 <h2>Reliable Centrifugal Pump Solutions with Masdaf</h2> Since 1977, MASDAF has been a leading company in the pump industry, manufacturing high-quality pumps. The company offers lightweight, quiet, durable, and self-priming centrifugal pump options with a customer-oriented approach. By exploring the brand’s product range, you can find pumps that are easy to use and highly efficient.
 <h2>Frequently Asked Questions About Centrifugal Pumps</h2> <h3>Where Are Centrifugal Pumps Used?</h3> Centrifugal pumps are widely used in industrial plants, irrigation systems, fire safety systems, heating and cooling applications, and potable water supply.
 <h3>Why Does a Centrifugal Pump Get Airlocked? </h3>A centrifugal pump becomes airlocked when there is a leak in the suction line or insufficient water supply. This reduces the efficiency of the pump and may cause malfunction. <h3>How to Select a Centrifugal Pump?</h3> Pump selection should be made considering the purpose of use, required flow rate, head (pressure), fluid properties, and energy efficiency criteria.

The general operating principle of a centrifugal pump is to generate pressure.
Click here to learn more about centrifugal pumps and their working principles.

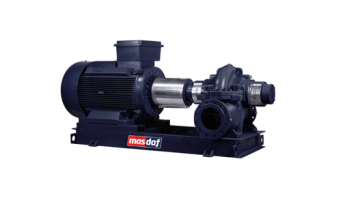

What is a High-Flow Water Pump?

High-flow water pumps, used in industrial facilities, agricultural irrigation, or emergency situations where water demand is high, enable the rapid transfer of large volumes of water in a short time. In this article, we will examine in detail what a high-flow water pump is, its types, operating principles, and areas of use.

A high-flow water pump is a powerful pump designed to transfer large volumes of water in a short period of time. These pumps have a much higher capacity compared to standard water pumps and are commonly used in infrastructure projects, flood and drainage operations, irrigation of large agricultural areas, and industrial facilities. <h2>Operating Principle of a High-Flow Water Pump</h2>High-flow water pumps are mechanical devices that operate based on the **centrifugal principle**. When the impeller inside the pump rotates at high speed with the help of a motor, it draws water from the center and propels it outward through the rotation. During this motion, the kinetic energy of the water increases, and due to the pressure difference created by the centrifugal force, the liquid is directed from the suction line to the discharge line. This allows water to be transported over longer distances or to higher elevations.

The most significant advantage of high-flow pumps is their ability to transfer large volumes of water in a short period of time. They are widely used in agricultural irrigation systems, industrial plants, firefighting networks, and infrastructure projects. Additionally, models known as **“high-flow multistage water pumps”** use multiple impellers in sequence, with each impeller adding extra pressure to the water, thereby increasing the overall efficiency of the system. This enables the pump to provide both high pressure and high flow simultaneously. With their durable construction, long-lasting designs, and energy efficiency, these pumps can be safely used in continuous and heavy-duty applications. <h2>Types of High-Flow Water Pumps</h2> High-flow water pumps are systems designed to meet various application needs. Their design considerations include energy source, required flow rate, pressure level, and operating conditions. Each model offers specific advantages, providing effective solutions across different industries.<ul><li>High-flow diesel water pump: Powerful pumps that run on diesel engines, ideal for environments without electricity. Commonly preferred in emergency situations, large areas, and mobile applications.
</li><li>High-flow multistage water pump: Uses multiple impellers to provide both high flow and high pressure. Frequently used in large-scale industrial projects and long-distance water transport applications.
</li><li>Portable high-flow pumps: Lightweight and easy to carry in field conditions. Commonly used for emergency drainage, temporary irrigation systems, and disaster response areas.</li></ul>When choosing between types, factors such as flow requirements, operating conditions, and energy availability should be carefully evaluated. The right choice increases efficiency and ensures long-term, reliable operation. <h2>Applications of High-Flow Water Pumps</h2> High-flow water pumps play an important role in many areas where high-volume liquid transfer is required. Thanks to their large capacity and strong performance, they provide reliable solutions for both daily operations and emergency situations.
<ul><li>Agricultural irrigation projects: Ensure rapid and efficient irrigation of large agricultural areas.
</li><li>Flood and drainage control: Help remove accumulated water quickly after heavy rains or natural disasters.
</li><li>Water transfer in industrial plants: Used for continuous and uninterrupted transportation of large amounts of water in factories and production facilities.
</li><li>Rapid water removal in infrastructure projects: Contribute to making construction, sewage, or tunnel project sites safe for work.</li><li>Emergency use by fire departments and municipalities: Used for firefighting, rescue operations, or quick response in disaster zones.

The diversity of application areas shows that high-flow pumps play a critical role not only in production processes but also in disaster management and public safety.</li></ul> <h2>Powerful, Efficient, and Durable Water Pump Systems with Masdaf</h2>High-flow water pumps play a critical role in many industries, from manufacturing to agriculture, by transferring large volumes of water quickly. To select the most suitable high-flow water pump for your needs, it is recommended to seek expert advice.

At Masdaf, we provide high-performance and reliable water pump solutions for all kinds of applications. Contact us for detailed information about our products. <h2>Frequently Asked Questions About High-Flow Water Pumps</h2><h3>How Deep Can a High-Flow Water Pump Draw Water?</h3>The suction depth of high-flow water pumps varies depending on the model but is typically around 4–6 meters. However, their discharge head is much higher and can reach several hundred meters. <h3>How to Use a High-Flow Water Pump?</h3> Depending on the application, electric or diesel-powered models should be selected. Before operation, ensure the water is clean, the suction line is airtight, and the discharge line is suitable for the required pressure level.

From industry to irrigation, a high-flow water pump offers efficient water management.
Learn the details and the right selection tips with Masdaf.

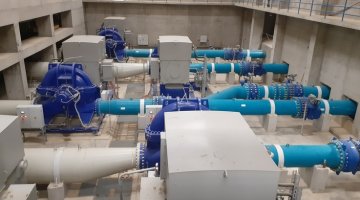

What is a Water Pump?

A water pump is a mechanical device that enables the safe, fast, and efficient transfer of liquids with different properties from one point to another. These devices come into play especially when it is not possible for liquids to move naturally, facilitating fluid transfer by creating pressure or changing the flow direction. Today, water pumps are widely used to ensure the effective operation of irrigation systems in agriculture, maintain continuous fluid circulation in industrial processes, transfer water across different levels in the construction sector, and meet daily domestic needs with ease.

Additionally, water pump systems play a vital role in areas where water resources are scarce, groundwater is deep, or natural pressure is insufficient to bring water to the surface. In this sense, water pumps not only meet daily needs but also directly contribute to increasing agricultural productivity, maintaining uninterrupted industrial production, and ensuring people’s access to clean water.
 <h2>What Is the Purpose of a Water Pump?
</h2>
Water pumps serve different functions depending on their area of use, playing a critical role in various sectors from everyday life to industry.
<ul><li>Delivering water to fields in agricultural irrigation systems
</li><li>Increasing water pressure in building booster systems
</li><li>Supplying water in fire extinguishing systems during emergencies
</li><li>Transferring liquids and processing operations in industrial plants
</li><li>Draining water in wastewater and drainage systems
</li></ul>
All these applications clearly demonstrate that water pumps provide an indispensable solution for both individual and industrial needs.
 <h2>Types of Water Pumps
</h2>
Water pumps are classified according to their area of use and purpose. The most common types of water pumps include:
<h3>Centrifugal Water Pumps</h3><ul><li> Move water using centrifugal force.
</li><li>Commonly used in industrial facilities and large-volume water transfer operations.
</li><li>Large centrifugal water pump models are preferred for high-flow applications.
</li></ul> <h3>Submersible Pumps</h3><ul><li> Operate underwater, typically used in wells.
</li><li>Known for their quiet operation.</li></ul> <h3>Vacuum Pumps</h3><ul><li> Used to draw liquids from the surface.
</li><li>A water suction pump is ideal for accessing water sources below ground level.
</li></ul> <h3>Diesel Engine Water Pumps</h3><ul><li> Can operate in areas without electricity.
</li><li>Especially suitable for agricultural use due to their mobility.
</li></ul> <h3>Water Pressure Booster Pumps</h3><ul><li> Used to increase water pressure.
</li><li>Common in buildings, hotels, and fire systems.
</li><li>Provide a solution when the mains water supply is insufficient.
</li></ul> <h2>&nbsp;Water Pump Motor and Structure
</h2>
A water pump motor is the core component that powers the pumping system. It can be electric, diesel, or gasoline-powered, and generally consists of the following parts:
 <ul><li>Casing: Provides mechanical protection for the pump.
</li><li>Impeller: The rotating component that moves the water.
</li><li>Shaft:Transfers power from the motor to the impeller.
</li><li>Seals and Bearings: Ensure leak prevention and mechanical support.
</li></ul>
Each component plays a crucial role in ensuring efficient, reliable, and long-lasting operation. The casing protects the system from external impacts, the impeller enables water movement, the shaft maintains flow continuity, and seals and bearings maintain mechanical balance.
When all parts work harmoniously, the pump motor offers both high performance and durability.
 <h2>Key Factors When Choosing a Water Pump
</h2>
Choosing the right water pump is essential for efficiency and energy savings. The following criteria should be considered:
<ul><li>Flow rate requirement (m³/h)
</li><li>Pressure requirement (bar or meters of head)
</li><li>Application area (clean water, wastewater, chemical, etc.)
</li><li>Energy source (electricity, diesel, gasoline)
</li><li>Installation type (surface, submersible, fixed, portable)</li></ul>

 Carefully evaluating these factors ensures the selection of the most suitable pump, offering long service life and reducing maintenance costs.
A well-chosen pump not only meets immediate needs but also provides significant advantages in terms of energy efficiency and reliability.
 <h2>Applications of Water Pumps
</h2>
Water pumps have a wide range of applications, including:
Agriculture: Irrigation systems, drainage, sprinkler systems
Industry: Cooling systems, process water transfer
Construction: Dewatering excavations
Domestic Use: Garden irrigation, booster systemsFire Systems: Providing emergency water supplyWastewater Systems: Transporting contaminated water

As seen, water pumps are used in various fields ranging from individual needs to industrial operations. They simplify life, support production processes, and contribute to safety. Properly selected and regularly maintained pumps offer long-term and efficient operation. <h2>The Right Water Pump Solution with Masdaf
</h2>
Since 1977, Masdaf has been providing high-quality and reliable solutions in the pump industry. With water pump solutions for every need, Masdaf ensures high efficiency, energy savings, and long-lasting performance. The product range includes specialized options such as large centrifugal water pumps, diesel engine water pumps, and water booster pumps.

With Masdaf’s engineering support and extensive service network, you can select the most suitable pump for your system and gain long-term operational advantages.
Contact Masdaf today for the right water pump selection and technical consultation.

What is a water pump?
Learn its basic operating principles, areas of use, motor types, and key factors to consider when making a selection.

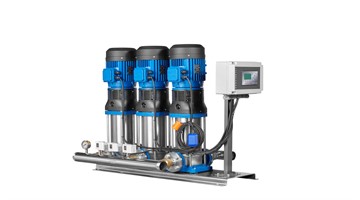

How to Adjust Booster Pump Pressure? l Masdaf

<h2>How to Adjust Booster Pump Pressure?</h2>

Booster systems are designed to operate within a specific pressure range to meet variable flow demands when mains pressure is insufficient. The pressure switch (pressostat) in these systems controls the pump’s start and stop pressures. Incorrect pressure adjustment can reduce pump performance and shorten the lifespan of system components.

When setting booster pressure, factors such as the pump’s performance curve, tank capacity, and application area (e.g., domestic systems, commercial buildings, or irrigation setups) should be considered. In this article, we’ll focus on how to properly adjust the pressure in domestic-type (household) booster systems from a technical perspective. <h2>What Is Booster Pressure?
</h2>
Booster pressure is the pressure created by a booster system to deliver water to the network or taps. This pressure ensures smooth water flow throughout the plumbing system, allowing water to reach all outlets — even in high-rise buildings or distant points — with sufficient force. Booster systems increase water pressure, enabling water to be transported over longer distances and to higher elevations.

 Booster pressure must stay within specific limits.
<ul><li>
Low pressure may cause weak water flow from taps or insufficient delivery.
</li><li>
Excessive pressure can damage the plumbing system, cause leaks at pipe joints, or break faucet fittings.
</li></ul>
Therefore, correct pressure calibration is crucial to ensure both safe and efficient operation. Additionally, properly adjusted systems improve energy efficiency and prevent unnecessary power consumption.
 <h2>
Why Is Booster Pressure Adjustment Important?
</h2><ul><li>
At low pressure: Water doesn’t reach fixtures efficiently, leading to discomfort and poor performance.</li><li>

At high pressure: Pipes, fittings, and devices may be damaged, and energy is wasted.
</li></ul>
Proper pressure adjustment ensures efficient and safe system performance, guaranteeing both user comfort and long-term durability. <h2>

How to Adjust Booster Pressure
</h2>
Pressure adjustment is typically done via the pressure switch (pressostat) located on the booster. The pressostat continuously monitors system pressure and activates or deactivates the pump based on preset limits. It maintains a stable range between the cut-in pressure (when the pump starts) and the cut-out pressure (when the pump stops).

A properly adjusted pressostat ensures steady water flow and prevents damage caused by overpressure. It also helps reduce energy waste, increasing system efficiency and service life.
 <h2>
How to Adjust the Pressostat
</h2>
The pressostat usually has two main adjustment screws:<ul><li>

Pressure Range Adjustment Screw (P):</li></ul>Sets the lower (cut-in) pressure. Turning clockwise increases both the cut-in and cut-out pressures.<ul><li>Differential Pressure Adjustment Screw (ΔP):
</li></ul>Adjusts the difference between cut-in and cut-out pressures. Turning clockwise increases only the cut-out pressure while keeping the cut-in pressure constant.

Example:<ul><li>

Cut-in pressure: 2 bar</li><li>

Cut-out pressure: 3.5 bar</li></ul>

In this case, the pump starts when pressure drops below 2 bar and stops when it reaches 3.5 bar.

 <h2>Pressure Adjustment in Domestic Boosters
</h2><ul><li>
For domestic (household) booster systems, follow these steps:
</li><li>

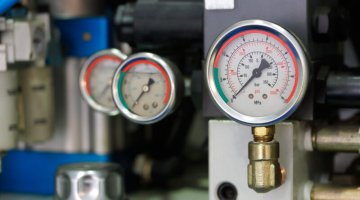

When the pump is off, check the system pressure using the manometer on the tank.</li><li>

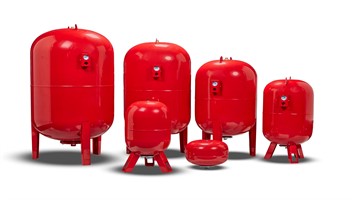

Check the tank’s air charge — it should be 0.2 bar lower than the system’s cut-in pressure (e.g., for a 2 bar cut-in pressure, the tank air should be 1.8 bar).
</li><li>
Adjust the pressostat screws as needed.
</li></ul>
Note: When checking the tank’s air pressure, make sure the system is depressurized and the booster is turned off. <h2>Important Notes for Masdaf Boosters
</h2>
Masdaf booster systems are factory-calibrated, and user intervention is not recommended.
If the system shows abnormal behavior, contact an authorized service technician instead of adjusting it manually.

 Additionally, pressure settings should always align with the pump’s characteristic curve, and the minimum permissible pressure must not be exceeded. <h2>Conclusion</h2>

Proper booster pressure adjustment ensures efficient operation and extends system lifespan.
If you suspect incorrect settings or are performing adjustments for the first time, refer to the user manual or contact an authorized service center. Incorrect settings can cause malfunctions or serious system damage.&nbsp;
With regular maintenance and routine checks, you can prevent major issues and maintain stable water pressure for consistent performance.

Setting the correct booster pump pressure ensures efficient and safe water flow. Learn how to adjust pressure settings through the pressure switch (pressostat).

How to Adjust Booster Pump Pressure?

What is a Sludge Pump? l Masdaf

<h2>What is a Sludge Pump?</h2> Sludge pumps are commonly used in industries such as construction, mining, and infrastructure. They are specially designed for the safe and efficient transfer of high-density fluids containing solid particles. Unlike standard water pumps, sludge pumps are made from more durable materials and are designed to handle abrasive or clog-prone fluids. Thanks to their robust structure, these pumps can easily transfer fluids containing stones, sand, gravel, or other solid materials. Their long-lasting performance under tough conditions makes them indispensable, especially in the mining and construction industries. Additionally, their ease of maintenance and high efficiency help businesses save both time and cost. <h2>What is a Sludge Pump?</h2> A sludge pump is a specialized type of pump designed for transferring fluids with high viscosity and solid particles. It is typically used in mining sites, tunnel excavations, construction sites, wastewater treatment plants, and industrial facilities. With a durable body, wear-resistant materials, and powerful motor systems, these pumps can operate continuously under demanding conditions.
 <h2>Types of Sludge Pumps</h2> Depending on the application and needs, sludge pumps are produced in various types. Factors such as the fluid’s density, the amount of solid particles it contains, environmental conditions, and the nature of the job directly influence the type of pump to be chosen. Therefore, pumps with different features have been developed for each sector and application. Below are the most common types of sludge pumps used in the industry, each offering distinct advantages:
 <ul><li>Heavy-duty sludge pump: Designed to handle fluids with a high concentration of solid particles. Thanks to their abrasion-resistant structure, they are commonly preferred in the mining and construction industries.
</li><li>Volute sludge pump: With a spiral (volute) body design, these pumps are used for safely transferring thick sludge and fluids containing solid particles.

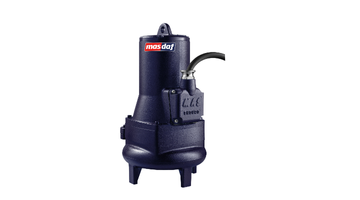

</li><li>Submersible sludge pump: Capable of operating underwater, these pumps are often used in deep excavations, tunnel projects, or areas where water drainage is difficult.
</li><li>Drilling sludge pump: Used during drilling operations to circulate sludge within boreholes. It improves drilling efficiency and helps cool the drilling equipment.
</li><li>Sludge removal pump:A practical and powerful type used in construction and infrastructure projects to remove accumulated sludge.
</li></ul> <h2>Applications of Sludge Pumps</h2>

Sludge pumps have a wide range of applications, including:
<ul><li>Transporting sludge and ore in mining operations&nbsp;</li><li> Draining accumulated water and sludge in construction excavations&nbsp;</li><li> Transferring sludge water in wastewater treatment facilities&nbsp;</li><li> Removing sludge in tunnel construction and infrastructure projects</li><li> Circulating drilling mud during drilling operations
</li></ul> <h2>How Do Sludge Pumps Work?</h2>Sludge pumps create high suction power through their strong motors, drawing sludge into the pump chamber. The sludge is then directed by a durable impeller and discharged under high pressure. The impeller’s design and wear-resistant materials prevent damage from solid particles such as stones, sand, gravel, or metal fragments. This allows the pump to operate smoothly without clogging or excessive wear, even in harsh conditions.

When used with variable-speed motors, sludge pumps can be adjusted according to the required flow and pressure, offering flexible performance. As a result, they ensure high efficiency and allow continuous, long-term operation.
 <h2>Selecting the Right Sludge Pump</h2> Choosing the correct sludge pump is crucial for efficient operation. Key factors to consider include:<ul><li>&nbsp;The density and particle size of the sludge
</li><li>&nbsp;Environmental and operating conditions&nbsp;</li><li> Required flow rate and pressure&nbsp;</li><li> Energy efficiency and motor power&nbsp;</li><li> Ease of maintenance and availability of spare parts
</li></ul>
Sludge pumps are specially designed for heavy-duty operations and provide reliable solutions for transferring fluids with high viscosity and solid particles. With their sturdy structure and wear-resistant materials, they offer long-lasting performance while minimizing maintenance costs. These features make them an essential piece of equipment for businesses that require uninterrupted operation in challenging environments.

If your project requires a high-performance and durable sludge pump, you can find the most suitable model for your needs in Masdaf’s wide range of products. For more information and professional support, contact Masdaf today. <h2>Frequently Asked Questions About Sludge Pumps</h2><h3>How does a sludge pump work? </h3>Sludge pumps use motor power to draw in sludge and discharge it under pressure with the help of an impeller.
 <h3>What is a sludge pump used for?</h3> Sludge pumps are used for the safe and efficient transfer of dense fluids containing sludge and solid particles.

Sludge pumps are durable types of pumps used for transferring fluids with high viscosity and solid particles. Access high-quality pump solutions with Masdaf!

What is a Sludge Pump?

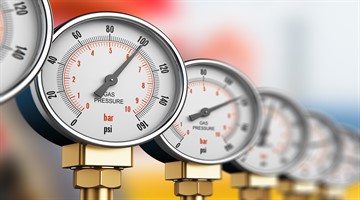

What is a Pressure Switch in a Booster Pump, What Does It Do, and How Is It Adjusted? l Masdaf

Hydrofor systems are designed to operate within a specific pressure range to respond to variable flow demands when the mains pressure is insufficient. The pressure switch (pressostat) in these systems controls the pump’s start and stop pressures. Incorrect pressure settings can reduce pump performance and shorten the lifespan of system components.

When adjusting hydrofor pressure, factors such as the pump characteristic curve, tank volume, and application type (e.g., domestic systems, commercial buildings, irrigation systems, etc.) must be considered. In this article, we will focus on how to properly set the pressure in domestic (household) hydrofor systems from a technical perspective.
 <h2>
What is Hydrofor Pressure?
</h2>
Hydrofor pressure is the pressure generated when water is delivered through a hydrofor system to the network or faucets. This pressure ensures that water flows properly through the home plumbing system and reaches all usable areas, even in challenging conditions such as high-rise buildings. Hydrofor systems increase water pressure, allowing water to be transported over longer distances and to higher floors.

Hydrofor pressure must remain within specific limits. Too low pressure can result in insufficient flow or weak water output from faucets. Conversely, excessively high pressure can damage the plumbing, cause leaks at pipe connections, or break faucet heads. Therefore, hydrofor systems are designed to maintain efficient and safe pressure levels, ensuring reliable water supply while also optimizing energy use.
 <h2>
Why is Hydrofor Pressure Adjustment Important?
</h2>
<ul><li>Low pressure: Water does not reach faucets with adequate speed, causing discomfort.</li><li>

High pressure: Can damage pipes, fittings, and devices, and increase unnecessary energy consumption.
</li></ul>
Proper pressure adjustment ensures that the system operates efficiently and safely. This balance guarantees both comfortable water use and the long life of the plumbing system.
 <h2>
How to Adjust Hydrofor Pressure?</h2>

Hydrofor pressure adjustment is critical for efficient system operation and is typically done via the pressostat (pressure switch) on the hydrofor. The pressostat continuously monitors water pressure and ensures the system operates within a specific range. It sets the lower and upper pressure limits for when the hydrofor starts and stops.

The pressostat ensures that the system maintains adequate water flow and pressure. It prevents low pressure from causing insufficient flow and high pressure from damaging the plumbing. Additionally, the pressostat helps optimize energy consumption, avoiding unnecessary costs. Proper adjustment of the pressure switch contributes to a longer lifespan for the hydrofor system and more efficient water use.
 <h2>
How to Adjust the Pressostat
</h2>
Adjusting the pressostat is an essential step for correct hydrofor operation. Typically, there are two main screws on the pressostat: the start (or ON) screw and the stop (or OFF) screw. These screws set the pressure levels for starting and stopping the pump. <ul><li>
Start screw: Determines when the hydrofor starts as water pressure reaches a specific level. This ensures water begins flowing through the pump at the correct lower pressure.
</li><li>
Stop screw: Determines when the hydrofor stops as water pressure reaches a specific upper level. This prevents the system from exceeding safe pressure limits and protects the plumbing and pump.
</li></ul>
Both screws must be adjusted carefully. Incorrect settings can lead to insufficient pressure or excessive pressure that damages the system. Adjustments should follow the manufacturer's recommended pressure values and be checked regularly for optimal performance and long-term reliability.
 <h2>
Typical Pressostat Screws
</h2><ul><li>
Pressure Range Adjustment Screw (P): Sets the lower pressure. Turning clockwise increases both lower and upper pressure.
</li><li>
Differential (ΔP) Adjustment Screw: Sets the difference between upper and lower pressure. Turning clockwise increases only the upper pressure while keeping the lower pressure constant.
</li></ul>
Example:
<ul><li>
Lower pressure: 2 bar</li><li>

Upper pressure: 3.5 bar
</li></ul>
In this case, the hydrofor starts when pressure drops below 2 bar and stops when it reaches 3.5 bar.

 <h2>Pressure Adjustment in Domestic Hydrofor Systems</h2>

For domestic hydrofor systems, the typical steps are:<ol><li>
Read the system pressure from the manometer when the pump is off.
</li><li>
Check the tank air pressure. It should usually be 0.2 bar below the system’s lower pressure (e.g., if lower system pressure is 2 bar, tank air should be 1.8 bar).
</li><li>
Make adjustments using the pressostat screws.
</li></ol> Note: When checking tank air pressure, the system must be fully depressurized and the hydrofor turned off.
 <h2>
Important Notes for Masdaf Hydrofors
</h2>
Pressostats in Masdaf hydrofors are factory-set; user adjustments are not recommended. Any malfunction should be addressed by an authorized service.

Pressure adjustments should be based on the pump characteristic curve and should not go below the pump’s minimum allowed pressure.

What is a hydrofor pressure switch, what does it do, and how is it adjusted? Learn all the details about this important component that controls water pressure and use it efficiently.

What is a Pressure Switch in a Booster Pump, What Does It Do, and How Is It Adjusted?

What is a Submersible Pump? l Masdaf

A submersible pump is a type of pump that operates inside the fluid or environment it is designed to handle. The motor is mounted directly on the pump body. Since the submersible pump is in direct contact with the fluid, the motor is equipped according to specific technical features. One of these features is a waterproof casing. Additionally, the motor is filled with oil to prevent any liquid that could cause a short circuit from entering and to protect against damage. The oil in the pump prevents fluid from leaking inside and significantly reduces potential hazards. Connection points are designed to be airtight and watertight. The pump is insulated to ensure it is leak-proof.

One of the main advantages of submersible pumps is that they are designed to operate **without being affected by external factors.
 <h2>Applications of Submersible Pumps
</h2><ul><li>Areas requiring water supply
</li><li>Irrigation and sprinkler systems</li><li> Groundwater level monitoring and control </li><li>Pressurizing clean or slightly dirty water in heat pump applications </li><li>Decorative fountains and water features </li><li>Small-diameter caissons or deep wells </li><li>Tunnels
</li></ul> <h2>Internal Structure of Submersible Pumps
</h2>
To understand how a submersible pump works, it is helpful to look at its operating principle. If you are using a well for drinking water or irrigation, you are likely using a submersible pump. One key feature of a submersible pump is that it is designed to operate fully submerged, which is why it is called “submersible.” It can also be referred to as a centrifugal pump, submersible electric pump, or bottom pump.

Submersible pumps are essential when existing water sources are insufficient or underground water needs to be extracted. They are reliable and economical, especially for drinking and utility water supply, and have a robust and long-lasting structure. They are crucial in irrigating gardens and agricultural areas, and in tourist areas, they provide a reliable solution to water supply problems.

Submersible pumps are suitable for deep wells and tunnels and can also be used for irrigation and water supply. Once activated, they can draw water from deep wells without needing to reach the very bottom. They can be installed about 2 meters above the well bottom. If the fluid temperature is around 30°C, the pump should be chosen accordingly. For example, submersible pumps used in pools or water tanks may require a cooling jacket.

A manometer is important for monitoring pump operation, and devices like voltmeters or ammeters are used to measure current and voltage. The sealed motor in a submersible pump rotates the impeller in the pump body, which accelerates the fluid and pushes it toward the discharge line. Submersible pumps cannot operate in air; they are designed to work fully underwater.
 <h2>Troubleshooting Submersible Pumps
</h2>
If your submersible pump cannot deliver adequate water flow, several reasons could be responsible:
<ul><li>The discharge valve may be closed, or the discharge pipe may be damaged.</li><li>The strainer at the suction inlet may be clogged.
</li><li>Low pumping height may indicate the well water level is too low.</li></ul>
 Although submersible pumps are designed to be protected from external factors, precautionary measures should still be taken against possible leaks. Common submersible pump issues include:
 <ul><li>&nbsp;Pump or check valve blockage → Remove and repair the pump.
</li><li>&nbsp;Low pump speed → Check for low voltage or imbalance.
</li><li>&nbsp;Leakage in the plumbing → Conduct a thorough inspection.
</li><li>Broken shaft or coupling → Remove the pump and inspect/replace if needed.
</li><li>Faulty pressure switch → Check or adjust settings.
</li><li>Clogged impellers → Remove and inspect the pump.
</li><li>&nbsp;Thermal protection triggered → Clean suction strainer, pump elements, or check valve.
</li><li>&nbsp;Unusual noise → Check for blockages or damaged components.</li></ul> <h2>Types of Submersible Pumps
</h2>
Masdaf offers four types of submersible pumps: BRN Series, BRX Series, EnduroLite, and Enduro.

 <h3>BRN Series</h3><ul><li>Maintenance-free and ready to operate fully submerged.
</li><li>Quiet and vibration-free operation.
</li><li>Less prone to human error.
</li><li>&nbsp;Applications: Clean water pressurization, irrigation, sequential water supply, groundwater lowering, industrial use.
</li></ul> <h3>BRX Series </h3><ul><li>Maintenance-free submersible pumps.
</li><li>&nbsp;Quiet and vibration-free.
</li><li>Similar applications to BRN Series.
</li></ul> <h3>EnduroLite&nbsp; </h3><ul><li>ENDURO 50, 100, 150 Lite Series are single-phase electric pumps, easy to install, and operate automatically.
</li><li>&nbsp;Also used as float-controlled drainage pumps.
</li><li>&nbsp;Manufactured for 50 Hz and 60 Hz.
</li><li>&nbsp;Fluid temperature range: 0–30°C
</li><li>&nbsp;Protection class: IP68
</li><li>&nbsp;Insulation: CI.F, Cable length: 10 m
</li><li>Mechanical seal: Silicon/Silicon
</li></ul> <h3>Enduro&nbsp;</h3><ul><li>Designed according to TS 12599 standard.
</li><li>Motor windings comply with TS 60085:2011 F-class insulation.
</li><li>Protection class: IP68 (TS 3033 EN 60529), available in 2, 4, or 6-pole asynchronous motors.
</li><li>&nbsp;Special impeller design allows for pumping different types of wastewater depending on the application.
</li><li>&nbsp;Manufactured using modern casting and production technologies.
</li><li>&nbsp;Liquid-proof measures applied to the motor housing and cable entry.
</li><li>Helical mechanical seal box protects the mechanical seal from solids in wastewater, ensuring long service life.
</li><li>&nbsp;Water leakage electrodes alert for early leaks.
</li><li>&nbsp;Thermistor protects the motor from overheating.
</li><li>&nbsp;Cables comply with TS EN 50525-2-21 (H07RN-F type), resistant to corrosive wastewater.&nbsp;</li></ul>

A submersible pump is a type of pump that operates completely submerged in the fluid or environment it is designed to handle.

What is a Submersible Pump?

Why does a booster pump fail? What are the solutions for booster pump malfunctions? l Masdaf

The booster pump, commonly known as a “water pressurization system,” is a type of water pressure boosting system used in places where water pressure is insufficient. It serves purposes such as providing pressurized water in buildings and industries when the mains water pressure is not adequate.
 Booster pumps are pieces of equipment that require periodic maintenance. If proper maintenance is not performed, booster pump malfunctions are likely to occur. <h3>If the Booster Pump Isn’t Working</h3> The first thing you should check is for electrical problems. Start by verifying whether the circuit breaker is intact. The water tank is another critical point — if the tank has run out of water, the float switch may have cut off the power supply, causing the pump to stop working. Always check the water level in the tank; if it’s empty, wait until it refills, bleed the air from the pumps, and then restart the system.
 Check the control panel for any error signals. If a fault indicator light is on, try resetting the system — this will reboot the setup.
 Another possible reason could be a burnt-out electric motor. The booster may fail to operate due to motor damage, in which case you should immediately contact technical support.
 <h3>
If the Pump Frequently Switches On and Off</h3> Start by closing the booster’s collector outlet valve. If the pressure doesn’t drop even with the valve closed, there may be a water leak in the building’s plumbing system — which can lead to further risks. Therefore, it’s essential to inspect all components of the installation carefully.
Possible causes include:
<ul><li>
The expansion tank may have lost air, or its air pressure might be low.
</li><li>
The membrane inside the tank may be damaged.
</li><li>
The pressure switches may be faulty.
</li><li>
There could be an issue with the control panel.
</li><li>
The booster pump may have been improperly selected.
</li><li>
The float switch might be malfunctioning.
</li></ul> <h3>
If the Booster Pump Isn’t Delivering Water</h3>Sometimes the booster operates normally but still fails to deliver water — which might later lead to electrical motor or pump failure. The first thing to consider in such cases is whether the water tank has run dry. Filling the tank can solve the issue.
 However, if the tank is full and the pump still doesn’t deliver water, it might be drawing air through the suction line. The float switch may be defective, the suction valve may be closed, or the suction filter may be clogged — all of which are potential causes of malfunction.
 In some cases, the pump may have air trapped inside; if this happens, the booster will fail to deliver water.
 <h2>
If the Booster Pump Is Too Noisy</h2> If the motor is making noise, it might be jammed, or its windings could be damaged. There could be a fault in one of the electrical phases, or the capacitor may have failed. Technical assistance can help fix these issues.
Additionally, the pump’s hydraulic or mechanical components may be damaged.
 <h2>
How to Reduce Noise in Booster Pumps
</h2>
One of the most common booster pump issues is excessive noise. If the noise is not caused by technical malfunctions, it can often be minimized in several ways:
<ul><li>
Proper pump selection is essential. The pump must not only be correctly chosen but also operated at appropriate pressure levels.
</li><li>
Noise can travel through pipes — to prevent this, use durable rubber hoses or compensators in the suction and discharge connections of the pump.
</li><li>
If vibrations from the pump are being transmitted to the floor and walls, install rubber pads under the frame. Ensure the pump and pads are technically compatible.
</li><li>
Check valves may produce noise; it’s useful to regularly inspect the condition of rubber components to prevent this.
</li></ul> <h3>
Preventive Measures to Avoid Booster Pump Failures
</h3>
The most crucial factor in preventing booster pump malfunctions is regular maintenance and cleaning.
If the suction line becomes clogged, the booster will run dry. A booster running without water can severely damage the impeller and stages, eventually burning out the electric motor. For this reason, regularly checking the water level in the tank is vital.
 Lastly, make sure the filters are cleaned regularly to prevent many potential failures. Monthly noise and leakage inspections should be performed, and technical service support should be scheduled every three months.

Commonly known as a “water pressurization system,” the booster pump — click here to learn about its malfunctions and solutions.

Why does a booster pump fail? What are the solutions for booster pump malfunctions

Why does a booster pump fail? What are the solutions for booster pump malfunctions?

Why do pumps fail, and what should you pay attention to? l Masdaf

Pumps appear in a wide range of applications — sometimes for hobby-related uses like garden irrigation, and other times in industrial processes such as oil transfer. The types of pumps used to move a fluid from one place to another vary depending on their purpose, and accordingly, the causes of failures differ as well. Questions like *“Why do hydraulic pumps fail?”*, *“Why do centrifugal pumps make noise?”*, or *“What causes a centrifugal pump malfunction?”* are commonly encountered.

Before diving into the causes of pump failures, it’s important to talk about one critical factor that affects both the likelihood of breakdowns and the overall lifespan of your pump: maintenance.
 It’s a well-known fact that many businesses don’t perform regular maintenance until a malfunction occurs. However, what is often seen as an “expense” — routine maintenance — actually prevents many future breakdowns. <ul><li>

In short, pump maintenance:&nbsp; </li><li>Helps prevent potential malfunctions.&nbsp; </li><li>Ensures more efficient operation. </li><li>Prevents possible downtime caused by failures.&nbsp;</li><li> Provides long-term savings with short maintenance intervals.&nbsp; </li><li>Extends the pump’s lifespan and improves performance quality.
</li></ul>
If maintenance is performed regularly according to the manufacturer’s recommendations, the pump will likely operate smoothly and rarely break down. But if a malfunction occurs despite regular maintenance, the following points should be checked. <h2>Centrifugal Pump Failures</h2>Pump malfunctions can be categorized in different ways — mechanical, fluid-related, or electrical.
Mechanical failures generally occur in the pump’s stationary or moving components. They can result from external factors, material fatigue, or unresolved earlier issues.
 Centrifugal pump failures may also stem from fluid-related problems such as:<ul><li>Air not being properly removed from the pump.</li><li>Operating speed being too low.</li><li>Incorrect performance selection or operational errors.
</li><li>Suction depth exceeding the pump’s design specifications.
</li><li>Clogged fan due to dirt or debris — often seen in new installations where pipes were not properly cleaned before connection.
</li><li>Incorrect fan installation.
</li><li>Incorrect pump installation, such as wrong rotation direction.
</li><li>Leaks, cracks, or damage caused by poor maintenance.
</li><li>Misalignment of the coupling.
</li><li>Clogged suction filters due to debris or residue (dirt trap blockage).
</li><li>Air leaks in the suction pipe (system-related issues).
</li></ul>
In addition to fluid problems, insufficient flow rate (capacity) in centrifugal pumps can also lead to failure. Common reasons include:
<ul><li>Air trapped in the suction section — the pump must be filled with water to release trapped air.
</li><li>Excessive suction height — the pump may need to be placed lower.
</li><li>Leaks in the suction circuit or stuffing box.
</li><li>Air leakage through worn packing (gland).
</li><li>Partially closed or damaged suction/discharge valves (e.g., a damaged impeller).
</li><li>Clogged or incorrectly mounted impeller.
</li><li>Cavitation (excessive suction difficulty).
</li><li>Insufficient clearance for the suction strainer — dirt traps should not be too close to the pump flange.</li></ul> <h2>Insufficient Pressure in Centrifugal Pumps</h2>
Pressure is the lifeline of a pump system. Inadequate pressure can cause several issues, such as:<ul><li>Low rotational speed (check RPM).</li><li>Air or gas trapped in the liquid.
</li><li>Mechanical damage, such as a worn or reversed impeller.
</li><li>Incorrect rotation direction or cavitation.
</li><li>Faulty connections or fittings.
</li></ul> <h2>Noise and Vibration Issues</h2> Just like in other machinery, excessive noise or vibration in pumps indicates possible failure.
Common causes include:<ul><li>Unstable or misaligned base frame.
</li><li>Air trapped in the system or suction line.&nbsp;</li><li> Insufficient or worn-out pump bearings.
</li><li>Impeller deformation, wear, or imbalance.
</li><li>Loose valves or protective components.
</li><li>Friction between rotating and stationary parts.
</li><li>Foreign objects causing imbalance — another reminder of the importance of regular cleaning and maintenance.
</li></ul> <h2>Electrical Failures in Centrifugal Pumps</h2> Pump failures aren’t always mechanical or fluid-related — electrical issues are also common causes.
<ul><li>The pump draws excessive power — rotational speed may be too high.
</li><li>Operating below rated pressure.
</li><li>Excessive discharge height or head pressure.
</li><li>Mechanical damage to the motor or pump (e.g., bent shaft, friction in rotating parts, or overtight packing).
</li><li>Incorrect or overly viscous lubricants.
</li><li>Low voltage or loose electrical connections.</li></ul> <h2>If the Pump Stops After Running for a While</h2>Sometimes, a pump may run normally but then stop unexpectedly or fail to deliver water. Possible reasons include:
<ul><li>Air leakage in the suction section — inspect the packing and suction line.
</li><li>Insufficient water in the suction chamber — as the pump operates, the water level may drop, causing air intake. Always ensure there is enough water for continuous operation.</li></ul>

Pump malfunctions can be categorized in several different ways. Click here to learn about common pump failures and important points to consider.

Why do pumps fail, and what should you pay attention to?

What is antifreeze? What is antifreeze used for? l Masdaf

Antifreeze is one of the terms we often hear, especially during the winter months. It is a chemical mixture that prevents the water molecules in the engine of cars and commercial vehicles from freezing or overheating due to seasonal conditions. Antifreeze also functions as a heat-transfer fluid. While it is commonly known for preventing freezing, its use is not limited to the winter — it should also be used in the summer. In winter, it prevents freezing, and in summer, it protects against overheating and boiling. Therefore, antifreeze can be used year-round. <h2>Antifreeze Colors</h2>&nbsp;Although antifreeze is naturally colorless, it is available in different colors on the market:
<ul><li>Red Antifreeze: Produced with organic inhibitors, red antifreeze typically has a longer lifespan compared to blue antifreeze. However, this does not automatically mean it is superior; in some cases, it can damage older vehicles because it is a strong chemical.
</li><li>Blue Antifreeze: Commonly used today, it is produced with classic inhibitor technology.
</li><li>Green Antifreeze: Inorganic and effective in preventing scaling and freezing. It provides strong protection but has a relatively shorter lifespan compared to red antifreeze.
</li><li>Orange Antifreeze: Organic and long-lasting, though it offers slightly weaker protection for the engine compared to green antifreeze.
</li></ul> <h2>Choosing the Best Antifreeze for Your Vehicle</h2>When selecting antifreeze, it’s important to analyze the mixture type. Antifreeze combines with water molecules to prevent freezing, overheating, and corrosion. Knowing the formula of the antifreeze helps in choosing the right product for your vehicle. One practical way to select the correct antifreeze is to consult the vehicle’s user manual.

For example, if the engine contains aluminum components, organic antifreeze types are generally recommended. The price of antifreeze varies depending on its type and properties.
 <h2>Benefits of Using Antifreeze</h2> Using antifreeze provides many benefits:<ul><li>Prevents freezing and overheating, which are common causes of vehicle malfunctions.
</li><li>Suitable for year-round use, not just in winter.
</li><li>Protects the engine from excessive heat or freezing.
</li><li>Prevents corrosion, thereby extending the lifespan of the vehicle.
</li><li>When used with pump systems containing antifreeze, it helps safeguard the vehicle against freezing, overheating, or corrosion-related issues.</li></ul>

Antifreeze is an essential chemical for maintaining engine health and ensuring reliable vehicle operation under all seasonal conditions.

Antifreeze is a chemical mixture that prevents the water molecules in a vehicle’s engine from freezing or overheating. Click here for detailed information about antifreeze.

What is antifreeze? What is antifreeze used for?

What is a booster pump? What is it used for? l Masdaf

A booster pump, commonly referred to as a “water pressurization system,” is a water pressure system used in places where the water supply is insufficient. It is typically installed in buildings, apartments, detached houses, or high-rise complexes to provide pressurized water when mains water pressure is inadequate. Booster pumps generally operate on electricity and increase the water pressure from taps. They include an expansion tank, which helps supply water in areas where mains water alone is not enough. A booster pump can be connected directly to the water network, but if the mains supply is cut off, the pump cannot operate effectively.

Although commonly known as a device for pressurizing water, booster pumps also serve another purpose: pumping water from a storage tank to a building, especially in single or two- to three-story houses or in areas where water interruptions are frequent. The main difference between a booster pump and a regular pump is that a booster pump is a complete system. It not only includes the pump itself but also control equipment that manages its operation. This system of protective and control components ensures longer pump life and overall system safety.
 <h2>What is a Hydromat Booster Pump?</h2> A hydromat is a device that converts a regular pump into a booster pump by attaching directly to the pump inlet, without requiring additional controllers. Hydromats are maintenance-free, easy to use, quiet, and simple to install. They do not cause humidity or unpleasant odors in water. Once a hydromat is installed, the pump effectively becomes a booster pump. Hydromats are also referred to as fluid control devices.
 <h2>Membrane Booster Pump Working Principle</h2> Booster pumps automatically activate when mains water pressure is insufficient. They pressurize water in the tank using air and deliver it to distant points. The pump selection should be based entirely on the required output pressure.

A booster pump system is not just the tank and pump; it also includes auxiliary components mounted on the tank:
<ul><li>Ball Valve (Shut-off Valve): Stops water flow when needed.
</li><li>Check Valve: Prevents water from flowing backward if pressure drops.
</li><li>Pressure Gauge (Manometer): Measures system pressure.
</li><li>Safety Switch: Releases excess pressure to maintain safety.
</li><li>Solenoid Valve: Installed in the air section, controls air intake based on water level.
</li><li>Pressure Switch: Controls pump operation according to tank pressure.
</li></ul> <h2>Booster Pump Safety</h2> Common issues with booster pumps include continuous operation, failure to start, reduced flow rate, water not being delivered, motor overloading, frequent cycling, and vibrations. Since booster pumps involve electricity and pressurized water, safety is a concern. However, if maintenance and operational guidelines are followed, booster pumps are not considered dangerous. Key safety and maintenance tips include:
<ul><li>Electrical Panels: These are the heart of the system. Ensure regular maintenance to prolong system life.
</li><li>Expansion Tank: Regularly check air pressure every 2–3 months to prevent failures.
</li><li>Correct Pump Selection: Consider the number of units, building height, tank location, horizontal and vertical pipe layout, friction losses, and distances to the units served.
</li></ul> <h2>Common Problems</h2>Booster continuously runs:** Could indicate a tank issue, check valve leakage, mains water cutoff, damaged expansion tank rubber, or air pressure issues. Always contact a professional if air pressure problems are suspected. <h2>Types of Booster Pumps</h2><ol><li>Automatic Air Booster Pumps: Supply their own air, commonly used in apartments or small industrial sites.</li><li>Compressor-Assisted Booster Pumps: Used in large facilities where sufficient air cannot be supplied naturally, e.g., industrial plants or large complexes.</li><li>Membrane Pressure-Balanced Tank Booster Pumps: Found in packaged booster units; small membrane tanks (a few liters to 20–25 liters) that occupy minimal space, typically used in residential applications.</li></ol>
 Booster pumps are essential for ensuring consistent water pressure, protecting plumbing systems, and delivering water efficiently in areas with variable or insufficient mains pressure.

Commonly known as a “water pressurization system,” a booster pump is a type of water pressure system used in places where water pressure is insufficient.

What is a booster pump? What is it used for?

What Is an Expansion Tank? Expansion Tank Prices l Masdaf

When water heats up, it expands. The expanding water affects the pressure in closed heating systems, causing an increase in system pressure. Over time, this pressure continues to rise, creating fluctuations that can damage the system. If the expanding water is not controlled as the temperature rises, it can cause leaks in pipes, the boiler, and the heating system. These leaks, which occur at the weakest points, reduce system efficiency and can lead to system failure. The device designed to prevent this pressure and potential hazards is called an expansion tank. Essentially, the expansion tank acts as a “mediator” between the increased heat pressure and the heating system. It helps control the rising temperature, reduces and balances system pressure, and ensures the system operates at optimal performance. Nowadays, every boiler room includes an expansion tank. Expansion tanks equalize the pressure in the system. They are small tanks divided into two sections by a rubber diaphragm.

Here’s how the system works: when hot water enters the heating system, the system pressure increases. As this pressure rises, the diaphragm in the expansion tank is pushed downward, compressing the air in the tank and creating space for the excess water. This reduces excessive pressure in the system and prevents damage to the pipes. <h2>What Is a Contraction Tank?</h2> Contraction tanks are designed similarly to expansion tanks but are used in cooling systems. They operate on the opposite principle of heating systems. In heating systems, water expands when heated, increasing system pressure, which is then absorbed by the expansion tank. The tank holds water equal to the calculated expansion volume based on the maximum water temperature. When the system pressure balances with the tank pressure, the flow stops. When the system returns to normal pressure, the tank returns the water to the system. In cooling systems, water contracts as it cools, reducing system pressure. Because the contraction tank pressure is higher, it supplies water to the system until equilibrium is achieved, then returns it to the tank when the system stabilizes.
 <h2>What Is a Balance Tank?</h2>Another name for the expansion tank is a balance tank. It is used in water pressurization systems alongside booster pumps. It is called a balance tank because it helps balance the system pressure. Without a balance tank or if the tank is faulty, pressure fluctuations occur every time the pump operates. The balance tank helps reduce these fluctuations. Another function in booster pump systems is to prevent frequent pump cycling. The tank’s capacity is determined by the motor power and the maximum number of pump cycles per hour.
 <h2>How to Calculate Expansion Tank Size</h2> When selecting an expansion tank, several points must be considered:
<ul><li>Tanks come in various sizes according to the pump system, ranging from 2 liters to 5,000 liters, and may be cylindrical, horizontal, vertical, or spherical.
</li><li>The tank must be suitable for the maximum liquid temperature. For potable water, a standard tank is sufficient.
</li><li>The installation height is important.
</li><li>Pay attention to the tank’s pressure resistance. </li><li>For use in industrial kitchens, food production, high-humidity areas, or hygienic environments, stainless steel expansion tanks may be required.
</li></ul> <h2>Periodic Maintenance of Expansion Tanks</h2> Maintenance is crucial. Common problems often result from air loss, so tanks should be checked every two months. Leakage is another common issue. If air is missing, water accumulates, and the tank eventually begins to leak. Problems usually arise from lack of maintenance. If the tank’s air is depleted, the membrane is punctured, or the tank itself is damaged, leakage occurs. Damaged tanks must be replaced, while air loss can be corrected by repressurizing. Pressurized tanks typically last 5 to 8 years.
 <h2>Where Are Expansion Tanks Used?</h2> Expansion tanks have a wide range of applications in both industrial and private sectors, including: <ul><li>Water systems&nbsp;</li><li> Washing systems </li><li>Pressure systems </li><li>Irrigation pumps&nbsp;</li><li>Solar and pressure maintenance systems&nbsp;</li><li> Cooling systems (contraction tanks)&nbsp;</li><li> Hot water and heating systems

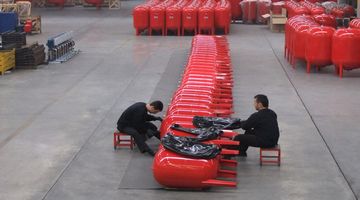

</li></ul> <h2>Masdaf Expansion Tanks</h2>Closed expansion tanks used in plumbing contain a hygienic, odorless BUTYL membrane for sanitary systems, and EPDM membranes for heating and cooling systems, with pressurized nitrogen gas around the membrane.

The outer surfaces of the tanks are coated with corrosion-resistant electrostatic powder paint. Tanks with replaceable membranes do not come in contact with water unless the membrane is damaged, so they are not corrosive. Under normal conditions (clean water and proper pump cycling), closed expansion tanks have a long service life. <h3>Applications of Replaceable Membrane Closed Tanks:</h3><ul><li> Single or double-pipe heating, air conditioning, and industrial systems</li><li>Underfloor heating systems, primary filling circuits&nbsp;</li><li> Boiler or storage filling circuits</li></ul> <h2>Expansion Tank Prices</h2>
Expansion tank prices vary depending on installation height, pressure resistance, and tank size. Tanks are not sold at a single price as each has unique features. The location and purpose of use significantly influence the price.

A device designed to prevent pressure and potential hazards is called an expansion tank. Click here for its applications and expansion tank prices.

What is an expansion tank?

What should be considered when installing and selecting a pump? l Masdaf

Pump models, which entered our lives with Archimedes’ invention and still exist today as Archimedes screws, are useful in many areas and continue to be developed. Pumps, used to lift water, transport liquids, or move fluids from low to high pressure, operate on the principle of mechanical forces pushing the substance through physical lifting and compression. In industry, where pumps are indispensable, another equally important aspect arises: installation. To ensure a pump operates efficiently and performs its function properly, certain points must be considered during installation. So, what should be considered when installing a pump? Let’s examine the details. <h2>Key Considerations for Pump Installation
</h2>
We can group the key points for pump installation under several headings:
<ul><li>Pre-installation stage</li><li>Determining the pump installation location</li><li>Pump foundation (pump base)</li><li>Suction pip</li><li>Discharge line</li><li>Centrifugal pump electrical connection</li></ul> <h2>Pre-installation Considerations</h2>

Pumps may have a hard and durable exterior, but like all materials, they are susceptible to damage. Even before installation, improper transportation or storage can cause damage. It is recommended to monitor transportation methods before reaching the installation stage. Equipment should be coated with corrosion-resistant materials. If the pump will be installed later rather than immediately, apply anti-corrosion agents to prevent internal rust (check the user manual). The pump must be delivered to the facility according to safety regulations. If installation is immediate, the pump location stage can begin.
 <h2>Choosing the Pump Location
</h2>
When installing pumps, leave sufficient space for operation, maintenance, and inspection. If the pump is heavy with a large motor or body, a crane or similar equipment should be available at the site. The pump should be installed in a dry, well-ventilated area, free from freezing and explosion hazards. Proper drainage channels or a drainage pump should be used to prevent water accumulation and leaks.
 <h2>Pump Foundation (Pump Base)
</h2>
The pump foundation and installation require careful work. First, prepare the installation site according to the above conditions. Incorrect or careless installation shortens the pump’s lifespan. If insufficient space is left around the pump, maintenance becomes difficult, reducing its operational life and increasing wear and frequent malfunctions. The foundation should be heavy enough to dampen vibrations and strong enough to prevent misalignment of the frame and coupling. Ensure the concrete foundation has fully cured and gained strength before installation. Foundations on solid ground are generally preferred (see pump base user manual).
 <h2>Suction Pipe Requirements</h2>

The suction pipe should be as short and straight as possible. If a longer pipe is required, increase the pipe diameter to reduce friction losses. For pumps drawing water from lower levels, the suction pipe should rise continuously towards the pump to allow air release. The suction pipe must be leak-proof and carefully checked. If fed from a pump located higher, use an isolation valve with a horizontal axis, which must always remain fully open during operation. Air entry must be prevented, and there should be distance between the suction pipe and tank feed pipe. The tank feed pipe should be further away and below the water level. When enlarging the suction pipe, use an eccentric reducer (flat side up). At the pump inlet, install a straight pipe equal to ten times the pipe diameter (Pipe diameter × 10 = straight length). Support the suction system from the floor or ceiling to avoid loading the pump.
 <h2>Discharge Pipe Considerations</h2>

A control valve may be needed on the discharge pipe to adjust flow and discharge height, positioned close to the pump. A check valve installed between the pump and control valve prevents backflow. For discharge heights over 10 m or long discharge lines, protect the pump from water hammer. The check valve prevents reverse rotation during unexpected motor failures or backflow. Use conical reducers when enlarging the discharge pipe, and support the pipe from the floor or ceiling. <h2>Centrifugal Pump Electrical Connection</h2>

Key points for electrical connection include:
<ul><li>Only authorized electricians should make the connection.&nbsp;</li><li> Strictly follow the safety precautions in the pump manual. </li><li>Ensure all power connections are disconnected before installation. </li><li>Avoid contact of cables with the pipe, pump, or motor housing.&nbsp;</li><li> Before connecting the motor, rotate the pump shaft by hand to check free rotation.&nbsp;</li><li> Check the motor grounding connection. Electrical connections vary by motor power, power source, and connection type, so follow the proper procedures.
</li></ul>
All remaining details on pump installation can be found in the pump user manual. Following these instructions ensures a safe and efficient pump installation.

There are certain points that must be considered during installation to ensure the pump operates efficiently and performs its function properly.

What should be considered when installing and selecting a pump?

What Is a Membrane? What Is It Used For? What Are Its Types? l Masdaf

Water is universally recognized as one of the most essential elements for life. However, under certain conditions, it can also cause destructive results. This is particularly important to consider in the context of **waterproofing systems in the construction industry**. It is crucial to protect buildings from the potential effects of moisture and water. Otherwise, structures will inevitably be exposed to the negative impacts of water and humidity, which can lead to serious cost implications. The longevity of buildings largely depends on this protection. <h2>What Is a Membrane?</h2>A membrane is a type of insulation material applied to the upper or lower surfaces of areas in constant contact with water, preventing water from seeping through. As is well known, materials such as steel blocks, wires, or concrete must remain durable and stable for many years. Membranes play a crucial role in preserving these materials.

Depending on its quality and the type of structure, there are different kinds of membranes available. You can choose the most suitable membrane type based on your needs, expectations, and budget. The durability, thickness, and other technical features of the product may vary depending on its price.

Membranes are widely used in insulation applications. It is well accepted that insulation has become an essential component in modern construction. In recent years, membrane applications have become a necessity rather than an option. Thanks to their tangible benefits, membranes have become indispensable. In a sense, the membrane is the core element of insulation.

As one of the key factors behind long-lasting buildings, membranes should never be overlooked. This special material is successfully applied in both thermal and waterproofing processes. When used for thermal insulation, it helps keep buildings warm in winter and cool in summer. Additionally, membranes are also used in industrial applications, particularly inside expansion tanks. <h2>Key Factors to Consider When Choosing a Membrane</h2> Membranes are among the most commonly used materials in the construction industry. Their practicality, cost-effectiveness, and efficiency make them highly attractive. With technological advances, both the materials and types of membrane applications continue to evolve.

When purchasing a membrane, there are several important criteria you should consider. By doing so, you can easily select the right membrane type for your needs and achieve long-term solutions to your building’s insulation-related issues. You can also consult professionals who are technically experienced in membrane applications.

When applying a membrane, pay attention to:
<ul><li>Delivery time
</li><li>Thickness type </li><li>Reinforcement type&nbsp;</li><li> The climate type it is designed for&nbsp;</li><li> Temperature resistance properties </li><li>Flexibility in cold weather&nbsp;</li><li> Resistance to conditions such as fire
</li></ul>
 Membrane applications are commonly used on external walls, roofs, pools, and expansion tanks.

-- <h2>What Are the Types of Membranes?</h2> Membrane types may vary depending on the area of application. Therefore, various kinds of membranes can be encountered. However, the most common and widely accepted types include: <h3>Bituminous Membrane</h3> Bituminous membranes are reinforced with polyester material and provide high performance and durability. Due to the rubber content, they are more flexible and resistant to contraction-related conditions.
 <h3>PVC Membrane Coating</h3>

These membranes use **PVC** as the main material and often include **UV absorbers**. They prevent deformation caused by layer exposure and provide excellent protection against tearing or cracking. <h3>TPO Membrane Coating</h3> Known as an environmentally friendly membrane type, TPO is single-layered and reflective. It is available in various sizes and thicknesses, typically ranging between 50–80 mils.
 <h3>EPDM Membrane Coating</h3>EPDM membranes are lightweight and highly durable, making them a popular choice. They offer excellent resistance to all weather conditions and remain intact even when buildings move. Commonly used in modern constructions, EPDM provides 100% insulation and is proven to be resistant to UV radiation. Installation is relatively simple and safe. It is also resistant to pressure and chemical corrosion.

What Is a Membrane? What Is It Used For? What Are Its Types?

What Is a Dosing Pump? Types of Dosing Pumps l Masdaf

Pumps designed to draw various liquids can be found in many forms, and different pump types are used in different ways. A dosing pump, which is a type of positive displacement pump, is often used to create a chemical or physical reaction. These pumps are responsible for injecting a product into the flow of a liquid and are used to integrate a substance into the flow of gas, vapor, or water.
 <h2>What Is a Dosing Pump?</h2> The question of what a dosing pump is often attracts attention. It can be described as a device that ensures the controlled dosing of various chemicals such as chlorine, liquid fertilizers, or acids. The movement of the diaphragm in dosing pumps creates the flow rate. Dosing pumps are highly important due to their ability to be used in many different fields. Examples include food processing and wastewater treatment. <h2>What Are the Types of Dosing Pumps?</h2> Dosing pumps can be produced in various types. Non-electric dosing pumps have a simple yet effective design. These pumps do not require electricity to operate and can be made from different materials depending on the type of chemical used. They are also used for chlorinating water. During the chlorine dosing process, all control can be performed manually. Factors such as water quantity, flow rate, and intended use of the water must be considered. A chlorine dosing pump can oxidize substances like nitrite, manganese, and iron found in the liquid or purify the water from bacteria and viruses.

Diaphragm fixed pumps fill and empty their chamber using diaphragms, pistons, and valves at the inlet and outlet. The piston draws the liquid into the pump chamber, and the required amount of chemical is injected at an appropriate rate. Another type is the diaphragm pulse injection pump. Like the fixed pump, it uses a diaphragm mechanism but does not have a constant flow rate. Instead of a continuous flow, it injects the chemical into the liquid in pulses with the help of a solenoid coil. The time interval between these pulses determines the flow rate. Although this type is less precise than the fixed injection pump, it stands out for its simpler design and lower cost.

Another type of dosing pump is the lobe pump. Lobe pumps allow a specific liquid volume to pass through gear wheels. Although they are not as precise as diaphragm pumps, they can be used for high-viscosity liquids that can self-lubricate to minimize wear. Peristaltic pumps are another highly precise dosing pump type. The liquid passes through a flexible, curved tube, and its flow is controlled by a rotating cylinder moved by a mechanical arm on the outside.
 <h2>How Does a Dosing Pump Work?</h2> Dosing pumps are also known as chemical metering pumps. They are used in many industries, including food processing, water treatment, industrial plants, mining, and medical laboratories. These pumps can operate in harsh environments with high temperature and pressure. Thanks to their strong design and functionality, dosing pumps offer many advantages. A properly selected pump type draws a set amount of liquid into its chamber. The predetermined chemical is then injected into the tank or pipe containing the liquid being dosed, completing the dosing process.

Dosing pump prices may vary depending on the technical features of the products. Professionals looking for dosing pumps can review innovative pump systems produced with advanced technology by Masdaf, a brand with over 45 years of experience in the industry.

Click here to learn more about dosing pumps and their types, which are responsible for injecting the product into the fluid flow.

What Is a Dosing Pump? Types of Dosing Pumps

Blog

As Masdaf, with nearly half a century of experience, we are an engineering-driven company that leads the pump industry by producing and advancing knowledge and technology. We aim to consistently share the insights we have gained through our expertise with our business partners. We provide in-depth information on pump technologies, including the research we have conducted to date, the innovative technologies we have developed as a result, and all essential details you need to know about pumps.

What Is a Bilge, and What Is a Bilge Pump Used For? l Masdaf

<h2>What Is a Bilge and What Is a Bilge Pump Used For?</h2> The bilge refers to the lowest part of a ship, located below the engine and boiler rooms and beneath the cargo deck. This area collects water that leaks into the ship as well as oils and other liquids from the engine and boiler rooms. All waste collected in the bilge is pumped into a storage tank using a bilge pump. The collected waste is then transferred to specialized barges at port for proper disposal. Bilge water is separated through chemical and physical processes, treated, and released back into the sea free of contaminants. Solid waste is usually incinerated. Bilge pumps ensure that all collected waste is safely removed and chemically treated before disposal. Releasing untreated bilge water directly into the sea is prohibited by law, and ships violating this rule may be fined or detained until compliance is ensured.
 <h2>Bilge Disposal Regulations</h2> Failure to follow bilge disposal regulations can result in ships being detained at ports and fined. Beyond financial penalties, the biggest harm is marine pollution. Releasing untreated bilge waste into the sea is a major environmental concern. Regulations prohibit the direct or indirect discharge of bilge waste into the marine environment. Ships must transfer waste to waste reception facilities or waste collection vessels, temporarily store it, and ensure that it is free from all harmful substances. Bilge pumps play a critical role in this process, acting as a key link between waste collection and disposal. <h2>What Is a Bilge Pump?</h2> As mentioned, the bilge is the lowest part of the ship where leaked water and oils accumulate. A bilge pump is a type of pump used on ships, yachts, and fishing boats to remove collected water and oil. Bilge pumps are essential for both routine operation and emergency situations. During maintenance or cleaning in the engine room, water or other liquids may enter the bilge wells, and the bilge pump is used to remove them. Bilge pumps are designed to manage water accumulation and ensure the safety and proper operation of the vessel.

Most bilge pumps on ships are either piston-type or centrifugal pumps. They are installed below sea level, and the size and type of the pump are selected based on the ship’s dimensions. <h2>How Does a Bilge Pump Work?</h2> Water entering the ship is removed using the bilge pump. It is recommended to have at least two bilge pumps on board: a smaller one for regular water removal and a larger one for emergency situations. The operating principle of a bilge pump can be summarized as follows:

1. Liquid enters the pump at the center of the impeller and is pushed outward between the impeller blades.
2. The continuous rotation of the impeller increases the liquid’s velocity.
3. The high-speed liquid enters the diffuser, where its kinetic energy is converted into pressure.
4. The pressurized liquid is discharged through the outlet.
5. This process allows bilge waste to be sucked from the bilge area and pumped out efficiently.
 <h2>How to Connect an Automatic Bilge Pump</h2> In addition to manual bilge pumps, there are automatic bilge pumps. These pumps use a float switch to operate automatically. As water in the bilge rises, the float rises and triggers the switch, starting the pump. When the water level drops, the float lowers and breaks the circuit, stopping the pump.
 <h2>How to Operate a Bilge Pump</h2>To operate a bilge pump correctly:

1. Open the suction valve before starting the pump.
2. Ensure the discharge valve is closed while opening the suction valve.
3. Start the preparation unit on the suction line and turn on the motor.
4. Slowly open the discharge valve.
5. Adjust the flow rate using the suction valve.
6. When stopping the pump, first turn off the motor, then close both the discharge and suction valves.

This process ensures safe and efficient removal of bilge water, protecting both the vessel and the marine environment.

The lowest part of a ship, where leaked water and oil from the engine and boiler rooms are collected, is called the bilge area. Click here for bilge pumps.

What Is a Bilge, and What Is a Bilge Pump Used For?

How Is Pump Maintenance Performed? l Masdaf

The sustainability, efficiency, and reliability of equipment largely depend on pump maintenance.

Equipment used in production, the longevity of auxiliary units, and the efficiency of machines in industrial facilities all point to one crucial topic: maintenance. Often, machines are not serviced until they show an error or malfunction. When machines fail due to lack of maintenance, users complain about their reduced lifespan. However, the long life and optimal performance of industrial equipment highlight the importance of regular maintenance. Periodic maintenance allows us to get maximum efficiency from our equipment. Below is an overview of basic pump maintenance, including subcategories such as submersible pump maintenance, centrifugal pump maintenance, fire pump maintenance, and booster pump maintenance. Here, we will focus on general principles: preventive maintenance and corrective maintenance.
 <h2>Periodic Pump Maintenance
</h2>
Periodic maintenance is performed at regular intervals or after a certain operating time. It increases efficiency and extends the equipment’s lifespan. Unlike corrective maintenance, it does not require a failure to occur. Like preventive maintenance, it is carried out to prevent potential problems. Equipment that resists until the last moment may break down unexpectedly, causing both operational downtime and financial loss.
 <h2>Daily Checks</h2>

Some maintenance tasks should be done daily to maintain stable efficiency and reduce overall maintenance costs. Daily checks also help prevent more costly failures. Daily pump maintenance checks may include:
 <ul><li>Monitor bearing temperatures.
</li><li>Check the oil for water contamination by observing its color and consistency.
</li><li>Inspect oil seals for possible leaks.
</li><li>Examine sealing elements to ensure there are no leaks.
</li><li>Check cooling system temperatures.
</li><li>Verify mains voltage.
</li><li>Perform noise and vibration checks, particularly in bearings.
</li></ul> <h2>Monthly Checks
</h2>
Monthly checks are less frequent but still important. They may include:
 <ul><li>Check oil levels and investigate any decrease. </li><li>Clean the oil indicator and filler caps. </li><li>Inspect the pump shaft and other equipment components.
</li></ul> <h2>Annual Checks
</h2>
Annual maintenance is more detailed and thorough. It may include:
 <ul><li>Inspect the pump’s operating condition.&nbsp;</li><li> Check auxiliary equipment after inspecting the pump.&nbsp;</li><li> Clean and maintain auxiliary devices such as valves or lubrication systems.&nbsp;</li><li> Inspect for wear and tear.&nbsp;</li><li> Check the pump and motor shafts.&nbsp;</li><li> Disassemble auxiliary equipment if necessary and perform inspections.&nbsp;</li><li> Check coupling alignment.&nbsp;</li><li> Verify control panel settings and operation, and clean the panel.
</li></ul>
Following these daily, monthly, and yearly checks ensures the pump operates efficiently, reliably, and safely over its expected service life.

One of the most important factors determining the sustainability, efficiency, and reliability of equipment is pump maintenance.

How Is Pump Maintenance Performed?

What Are the Differences Between Pump Types? l Masdaf

There are many different types of pumps, depending on their intended use and function. Choosing the right pump can be complex, as it depends on factors such as the type of liquid to be pumped and the distance it needs to be transported. Pumps can also be categorized based on their design and operation. To simplify the selection process, pumps are generally classified into two main types, which operate in very different ways and reflect most of their design characteristics: centrifugal pumps and positive displacement pumps.
 <h2>&nbsp;Types of Pumps and Their Uses
</h2>
Centrifugal and positive displacement pumps are the two main categories commonly used. Both types serve the primary purpose of moving liquid from one point to another, but they operate differently. Centrifugal pumps transfer the motor’s kinetic energy to the liquid using a rotating impeller, increasing the discharge speed and pressure. With a constant motor speed, the discharge rate remains constant. Positive displacement pumps, on the other hand, capture a fixed volume of liquid in their chamber and force it out at the pump outlet. Positive displacement pumps can be rotary, piston, or diaphragm types. Centrifugal pumps typically have high capacity but relatively low discharge pressure, while positive displacement pumps have lower capacity but can achieve higher discharge pressure.
 <h2>Centrifugal Pump Types
</h2>
Centrifugal pumps can be further classified based on the mechanism driving the diaphragm: <ul><li>Mechanical Actuated: These pumps use a mechanical linkage directly connected to the diaphragm. A gear system or other mechanical mechanism converts motor rotation into the diaphragm’s back-and-forth motion. Flow can be adjusted by changing the stroke length or pump speed.</li><li>Hydraulic Actuated: These pumps use an intermediate hydraulic fluid on the non-product side of the diaphragm to move it. The hydraulic fluid is pressurized by a piston, which indirectly moves the diaphragm. Flow is adjusted by changing pump speed or the amount of hydraulic fluid.
</li><li>&nbsp;Solenoid Actuated: These pumps use a solenoid powered intermittently by electricity. The solenoid creates an electromagnetic force that moves a metal component in the diaphragm, causing it to flex. Flow is adjusted by changing the pump speed.</li></ul> <h2>Positive Displacement Pump Types</h2>

Positive displacement pumps create a suction space on the inlet and a compression space on the outlet, applying enough force to move a fixed amount of liquid. They are divided into:
 <ul><li>Piston Pumps: These pumps use a piston that draws in and pushes out liquid. Valves ensure flow moves in only one direction, producing a pulsed flow.</li><li>Rotary Pumps: These pumps use interlocking gears to push liquid through the discharge side, generating high pressure.</li></ul> <h2>Differences Between Centrifugal and Positive Displacement Pumps
</h2>
Both pump types move liquids, but they operate differently. Centrifugal pumps increase liquid velocity to generate pressure at the outlet, while positive displacement pumps capture a fixed amount of liquid and transfer it from the inlet to the outlet. In centrifugal pumps, flow depends on changing pressure, whereas positive displacement pumps maintain consistent flow regardless of pressure changes. Both types can regulate flow by adjusting speed. Positive displacement pumps are less affected by viscosity and high pressure, whereas centrifugal pump efficiency decreases with high viscosity and extreme pressure levels.

Centrifugal pumps are generally not used for liquids above 850 cSt, and performance drops significantly above 100 cSt. In contrast, positive displacement pumps become more efficient with increasing viscosity and pressure.

Many pump types are available to meet industrial needs, including booster pumps, multistage pumps, and end-suction pumps. Choosing the right pump ensures high performance, long service life, and efficiency for specific applications.

There are many different types of pumps, depending on their intended use and function. Click here to learn about the various pump types and their differences.

What Are the Differences Between Pump Types?

What Is a Circulation Pump and What Is It Used For? l Masdaf

A circulation pump is a device that ensures the movement of water circulating within a system. Circulation pumps are essential for closed-loop heating and cooling systems, helping to maintain the flow of liquids in boilers, water heaters, and similar equipment. In heating systems, they overcome resistance in the piping and deliver heated water to radiators or other heat emitters. The selection of a circulation pump is crucial for heating systems, as it functions like the heart of the system, ensuring liquid flow even to the most distant points. Circulation pumps are commonly used for heating and hot water circulation. Their use has allowed modern heating systems to operate more efficiently, reduce pipe diameters, and provide higher efficiency at lower temperatures. By maintaining a small amount of heated fluid in the pipes, the water does not cool, ensuring consistent heating and improved system efficiency.
 <h2>What Is the Purpose of a Circulation Pump?</h2>

The primary function of a circulation pump is to move water through the system. It plays a critical role in overcoming the resistance of the piping so that heated water reaches heat-emitting devices. Key benefits include:
 <ul><li>Reducing water waste: Since a circulation pump ensures there is always hot water available, it prevents unnecessary water loss.
</li><li>Energy and cost savings: In spaces where constant hot water is not required, circulation pumps prevent fluid from accumulating in pipes, saving both energy and money.
</li></ul> <h2>Circulation Pump Installation</h2>

To install a circulation pump:

1. Clean the piping if the system is new.
2. Use heat-resistant gaskets during installation.
3. Ensure the pump’s flow direction points toward the boiler.
4. Connect the pump to an electrical panel that supports its maximum flow rating.
5. Set the desired pump stage.
6. Proper grounding of the electrical system is crucial.
7. For cooling systems, protect against freezing and ensure insulation.
8. If installed in lower areas like basements, consider a drainage pit or use a drainage pump to prevent water damage. Circulation Pump Selection

Factors to consider include:
 <ul><li>Type of fluid (e.g., hot water, steam, heated oil) </li><li>Application purpose and location&nbsp;</li><li> Required flow rate and discharge height, which determines how much water must circulate to heat the building efficiently&nbsp;</li><li> Compliance with relevant standards
</li></ul> <h2>How to Remove Air from a Circulation Pump</h2>

Before filling the system with water:

1. Check radiators, connections, valves, and radiator caps, tightening any loose parts.
2. Air trapped in the system can prevent proper heating and cause noise.
3. To release air, turn the plastic part of the bleed valve and open it downward. Have a container ready as water may spurt out.
4. If the pump makes noise or the system is not heating properly, inspect the entire system. Issues may include a blocked pump, worn bearings, or trapped air. In some cases, replacing the pump may solve the problem; in more complex situations, a full system check is recommended.

A circulation pump is a device that ensures the movement of water circulating within a system. Click here for detailed information about circulation pumps.

What Is a Circulation Pump and What Is It Used For?

What Is a Vacuum Pump and What Is It Used For? l Masdaf

A vacuum pump is a device that removes gas molecules from a closed unit to create and maintain a partial vacuum, leaving a portion of the vacuum behind. When looking at the history of vacuum pumps, we see that they are a very old invention. The vacuum pump was first developed by Otto von Guericke and has since become a common tool in the industrial sector.

Vacuum pumps are used to generate negative or low pressure. In motorized vehicles, they are used not only to create vacuum but also to ensure certain systems operate smoothly. In some cases, if vacuum storage is required, a vacuum accumulator is also used. Vacuum pumps can be both mechanical and electrical.

The operating principle of a vacuum pump is relatively simple: a vacuum is a space where the gas pressure is much lower than atmospheric pressure. The kinetic force of moving gas molecules exerts pressure on the walls of the container. Inside the pump, a mechanism expands a small chamber to reduce pressure below atmospheric level, allowing some liquid or gas to be drawn into the pump’s chamber.
 <h2>Types of Vacuum Pumps</h2>

There is no single type of vacuum pump; they vary based on technology and operating conditions. Depending on whether the pump interacts with water or oil, they are classified into wet or dry types. Common classifications include:
 <h3>Dry Vacuum Pumps</h3><ul><li>Provide a clean vacuum and require less maintenance.&nbsp;</li><li> Produce no waste.&nbsp;</li><li> Main drawback is high initial cost.&nbsp;</li><li> Include diaphragm, piston, rotary, and turbomolecular pumps.</li></ul> <h3>Water-Based Vacuum Pumps</h3><ul><li> Lower initial cost compared to dry pumps.&nbsp;</li><li> Require minimal maintenance. </li><li>Corrosion-resistant and capable of handling contaminated water.
</li></ul> <h3>Oil-Based Vacuum Pumps</h3><ul><li> High pumping capacity and efficiency.&nbsp;</li><li> Economical with regular maintenance required, especially oil changes.</li><li>Often include filters to protect the pump and the environment.
</li><li>Include rotary vane and gear pump designs.
</li></ul> <h2>Applications of Vacuum Pumps</h2>
Vacuum pumps are used across many industries and applications: <ul><li>Manufacturing industries that require vacuum and gas injection.
</li><li>Medical applications, such as suction devices.
</li><li>High-vacuum laboratory processes.&nbsp;</li><li> Specialty coatings in automotive and Formula 1 vehicles.&nbsp;</li><li> Oil refining processes.&nbsp;</li><li> Sterile production environments.&nbsp;</li><li> Air removal in various industrial processes.&nbsp;</li><li> Textile industry, for drying processes.&nbsp;</li><li> Removal of unwanted gases or vapors in chemical processing.
</li></ul>
Vacuum pumps are versatile and essential tools wherever controlled vacuum conditions are required.

A vacuum pump is a device that removes gas molecules from a closed unit to create and maintain a partial vacuum.

What Is a Vacuum Pump and What Is It Used For?

What Is NFPA and What Are NFPA Standards? l Masdaf

NFPA essentially stands for “National Fire Protection Association.” It can be defined as a universal organization that includes many standards related to fire safety and is mandatory to apply specifically in the United States. NFPA has gained great respect worldwide thanks to its content and extensive programs on fire safety. This is, of course, also true for Turkey. NFPA is currently the most referenced and respected organization in its field globally.

Although based in America, many organizations in Turkey are also members of NFPA. Membership in this organization can be considered an important reference. While similar standards may exist in every country, NFPA has a universal recognition and its content is much more comprehensive. The number of references alone is one of the most important indicators of this. NFPA sets certain standards for the use of fire pumps, fire pump systems, and motor control systems. These cover both installation rules and performance characteristics.

Turkey is currently an official member of NFPA. The first work related to NFPA in Turkey dates back to 1986. The organization specifically includes fire pumps and automatic sprinklers. A committee for fire pumps was established by five members of an association related to insurers. The headquarters of this particular insurance company is in Boston. The goal of this private company is to minimize existing losses. It inspects the compliance of both panels and pumps according to NFPA standards. NFPA, a completely non-profit organization, primarily aims to prevent loss of life and property. Besides NFPA, UL standards are also considered as criteria in this context.
 <h2>
Scope of NFPA Standards
</h2>Examining the structure of NFPA, we see that it outlines a framework for motor control systems, pump systems, fire pumps, and auxiliary components regarding both performance and installation rules. NFPA can also be referred to as the “National Fire Protection Association of the United States.” Fire is a serious threat universally. Proper preparation for fires, which often have severe consequences, and organizing the system consciously significantly reduce the risk. Severe fire consequences largely result from inadequate preparation. Complying with various standards and successfully passing necessary inspections is extremely important for organizations. Such standards are crucial for eliminating or minimizing both life and property losses. Independent organizations periodically inspect enterprises operating in industries with fire risks.

Emergency action plans must be prepared in detail. Today, in many countries worldwide, technologies from automatic sprinklers to fire cabinets, hydrant systems to water-based fire extinguishing systems are designed according to this standard. The benefits provided by NFPA standards are proven and recognized worldwide. As a general rule, any system must have all products used within it meet the performance requirements of the standard under which it was designed. This is considered a principle of integrity. If this is not followed, there can be serious mismatches between design and products. Attention to this criterion is essential when procuring products, as all fire safety stages are interconnected and cannot be evaluated independently.

In some references, NFPA may directly be cited as a hazardous material labeling standard. It provides information about the first steps to take during emergencies, mandatory procedures, and general precautions. The seriousness with which NFPA is regarded worldwide and used as a reference is not coincidental. NFPA is one of the strictest and most rigorous organizations globally, especially regarding pump systems. This organization not only sets various rules and standards for fire safety but also publishes books and journals that are recognized worldwide. The journals published by NFPA serve as references for many countries, making it a leading organization in terms of education as well.
 <h2>
Fire Pumps According to NFPA</h2>
Fire pumps are given special attention under NFPA. Both material and performance characteristics are crucial in this context. NFPA standards are updated periodically. Significant differences can be observed between general-purpose pumps and fire pumps. Fire pumps are primarily designed to ensure maximum safety, particularly maintaining precise discharge pressure. General-purpose pumps, on the other hand, prioritize maximum efficiency. NFPA-compliant fire pumps must have a dedicated control panel.

At zero flow, the pressure cannot exceed 1.4 times the rated value. There are also specified values for bearing and suction pipe dimensions. Additionally, the fundamental required characteristics of the pump casing, shaft, and seals are defined. NFPA-compliant pumps offer significant advantages. Manufacturers and businesses supplying pumps must pay attention to these requirements for public safety. While NFPA standards are stricter than other standards, they provide very positive long-term results.
 <h2>
Fire Pump Specifications According to NFPA 20</h2>
NFPA 20 establishes important standards for fire pump characteristics. Due to the special requirements and sensitivity of fire pumps, they differ from many industrial products. This sensitivity is carefully reflected in the standards. Significant differences exist between general-purpose pumps and fire pumps. Fire pumps focus on maximum safety and maintaining precise pressure throughout their operation.

The design process is aligned with this purpose. General-purpose pumps usually prioritize efficiency and economic operation. Fire pumps have rated flows ranging from 100 to 8000 gpm. The rated pressure values are 30–262 psi for horizontal shaft pumps and 26–510 psi for vertical shaft pumps. Horizontal shaft end-suction fire pumps have flow rates of 50–1250 gpm, inline pumps 50–750 gpm, and vertical turbine pumps 250–5000 gpm.
 <h3>
Material Requirements for Fire Pumps According to NFPA</h3>
NFPA 20 specifies the material requirements for fire pumps. Pump casing materials vary depending on pressure class. Impellers must be made of bronze or stainless steel. Cast iron is not accepted. Pump shafts must also be made of stainless steel. Sealings must use soft mechanical packing. Packing bearings should be designed with at least five rows. Bearings should be greased and designed to operate for up to 5000 hours.
 <h3>
Performance Requirements of Fire Pumps According to NFPA</h3>
NFPA 20 defines the performance requirements of fire pumps based on three criteria. For example, closed discharge pressure should not exceed 140% of rated pressure. The pump curve should intersect or surpass the rated flow and pressure. Pumps may operate at 150% of rated flow when required, maintaining at least 65% of rated pressure. A key performance criterion for fire pumps is water velocity, which should not exceed 3 m/s. Pipe diameters in designed systems should be chosen accordingly.

All calculations are based on 20°C water. Motor power should match the rated flow. Manufacturers must prove that pumps meet these specifications by performing individual hydrostatic tests. Certificates must include flow, pressure, shaft power, and efficiency curves. Fire pumps must also display a metal nameplate reflecting key performance characteristics.
 <h3>
Comparison of NFPA and EN 12845
</h3>NFPA standards are often compared to EN 12845 standards. Although both standards address the same theme, there are significant differences. In Turkey, the fire regulations enacted in 2007 made TS EN 12845 mandatory. Some provisions of EN 12845 conflict with NFPA requirements, giving NFPA an advantage. This explains why NFPA remains the most preferred universal standard worldwide. Users should be aware that they are responsible for any shortcomings in the standard they adopt.

NFPA has gained great respect worldwide thanks to its content and extensive programs on fire safety. This is, of course, also true for Turkey. NFPA is currently the most referenced and respected organization in its field globally.

What Is NFPA and What Are NFPA Standards?

What is cavitation? Why does cavitation occur in pumps? l Masdaf

Cavitation occurs as a result of the formation of vapor-filled bubbles and their sudden collapse. Cavitation problems usually arise when the pressure in the pump drops below the vapor pressure of the pumped fluid. Cavitation damage poses a threat to the pump. To prevent cavitation, a minimum pressure, defined as Net Positive Suction Head (NPSH), must be maintained at the suction to ensure the liquid does not boil or vaporize. This minimum pressure prevents the formation of cavitation. The pressure at the suction must be higher than the vapor pressure of the fluid. If cavitation damage exists in the pump, it may be necessary to throttle the control valve on the discharge side. By throttling the control valve, it is possible to reduce the flow rate and the NPSH required by the pump. The important point here is to ensure that the remaining flow is sufficient to cool the pump. Cavitation leads to the formation of small gas bubbles in the fluid, which gradually reduce the pump’s capacity and shorten its lifespan. It also causes noisy operation, which is one of the most disruptive effects. Cavitation occurs due to the rapid movement of any substance within a fluid and can be considered a type of phase change phenomenon.
 <h2>Negative Effects of Cavitation</h2> Cavitation applies to all systems with pressure and velocity changes, and it can even occur in the human body, such as in joints. Cavitation is proportional to the ambient temperature. When the boiling temperature decreases, cold boiling occurs with water vapor and air bubbles inside the system, leading to cavitation. In pumps, the lowest pressure occurs at the impeller inlet, so cavitation generally accumulates there. Key effects of cavitation include: <ul><li>Cavitation is caused by low pressure but can be prevented by controlling the pressure drop.</li><li>It occurs in the liquid phase, making it rarely observable in solid or gas phases.
</li><li>It shortens pump life, causes noise, and creates erosive and abrasive effects.
</li></ul> <h2>Causes of Cavitation</h2> As mentioned earlier, pressure and cavitation are closely related. Cavitation damage can result from:
 <ul><li>&nbsp;Low atmospheric pressure at the operating points of pumps or turbines.
</li><li>&nbsp;Dissolved air or other gases in the liquid.&nbsp;</li><li> Long suction lines or closed suction valves.&nbsp;</li><li> Flow rates exceeding standard limits.&nbsp;</li><li> High resistance in the suction line.
</li></ul> <h2>Problems Caused by Cavitation</h2> Cavitation not only shortens pump life and causes noise but also leads to other issues. Performance loss in the system is a major concern. Noise from cavitation reduces pump efficiency, and vibrations may also occur. Over time, wear may develop, and the properties of the fluid in the system may degrade.
 <h2>How to Detect Cavitation in a Pump</h2> One way to detect cavitation is by comparing pressures. The pressure at any point in the fluid is measured. If the pressure equals or falls below the vapor pressure, cavitation damage is likely. Regular pressure testing, along with system analysis and preventive measures, can reduce the risk of cavitation and ensure a healthy operating environment.

Cavitation occurs due to the formation of vapor-filled bubbles and their sudden collapse. Click here for details on cavitation issues.

What is cavitation? Why does cavitation occur in pumps?

Things You Should Know Before Buying a Pump l Masdaf

Pumps are used in a wide range of areas, from maritime applications to fire systems, building technologies, and industry. Since pump types vary according to each need, there are some important factors to know before making a purchase. These factors can be classified as the type of fluid, the transfer rate of the fluid, the discharge process, the source of suction, and other tools that may be needed during this process.
 <h2>
Effect of Fluids in Pumping Process</h2>The type of fluid to be pumped must be known for proper product selection. In addition, the specific gravity of the fluid and its viscosity, which represents the resistance of the fluid to flow, are important. It is also essential to indicate whether the fluid contains any chemicals. If the fluid contains solid particles, the type of solids, particle size, proportion of solids in the fluid, and whether the particles are smooth or hard must also be considered. The temperature of the fluid at 20°C is another important factor. The method of fluid flow—whether dosing, transferring from one source to another, or other transfer methods—must be determined. At this stage, whether chemicals will be used, and if so, their names and concentration, are also important considerations. <h2>

Suction and Discharge Process in Pumping</h2>
The length of the suction line from the source to the pump must be considered. It is also important to know whether a self-priming pump is needed. The source of pumping may be a reservoir or a well, and a flooded suction method can also be preferred, making the chosen method a key criterion in product selection. For discharge, the orientation of the line from the start to the discharge point—horizontal or vertical—and its length must be known. Friction losses affecting the discharge process must be taken into account, including pipe type and fluid viscosity. It must also be known whether the discharge is done by open free flow or by dosing/transfer into a pressurized pipe. If dosing or transferring into a pressurized pipe, the pressure value must be known. Other factors, such as the chosen power source and its stability, are important. Depending on the energy source and type, variables like 240V, 415V, 50/60Hz, diesel, gasoline, or air must be specified. It must also be decided whether variable-speed motors, base plates, and transportation tools are needed.
 <h2>
Concepts to Know Before Purchasing a Pump
</h2>To make the correct product choice, it is necessary to understand certain key concepts. A base plate is a type of plate on which the pump and motor are mounted. Dosing is a controlled pumping method used to discharge the correct amount of fluid. Flooded suction is used when the fluid source is below the pump and fed by gravity; this method is preferred for centrifugal pumps. Friction loss between the pump and the fluid causes pressure loss, and certain pump parts are more sensitive to this force. Friction loss between the pipe and the fluid arises from the fluid’s movement against the pipe wall, so rougher pipes create higher friction. A self-priming pump creates an initial vacuum with its reserved fluid to help draw the fluid from the source. Variable-speed motors are used to control the flow in the system by changing the impeller speed.

You can also explore MASDAF’s developed products and choose a model according to your needs while considering these factors and concepts. MASDAF uses smart systems in its products. Thanks to intelligent technological systems, maintenance costs are reduced, performance increases, and efficiency improves. You can select smart, practical, and functional products suitable for your operation with MASDAF quality.

Pumps are used in a wide range of areas, from fire systems to building technologies. Click here to learn what you need to know before buying a pump.

Things You Should Know Before Buying a Pump

Wastewater Pumps and Sustainable Solutions l Masdaf

Water resources depletion has become a global issue. Increasing human population and improper use of resources have created the risk of drought. Therefore, the proper use of water in Turkey and other countries has become increasingly important. Devices that enable water transfer are called pumps. Wastewater pumps are mechanisms used to transport dirty water. Developed with different technologies, these products also help achieve savings.
 <h2>
What is a Wastewater Pump?
</h2>Water is used in homes, workplaces, factories, and various other areas. After usage, the water is discharged. Discharged water is referred to as wastewater. These are classified into gray water, black water, or domestic waste. Wastewater cannot be reused because it is not clean. Pumps developed with smart systems offer opportunities for recycling. Water that would normally be unusable is purified through special systems. This creates water that can be used in areas such as agricultural fields, helping combat drought while also reducing costs. Businesses meet their needs with treated water, achieving financial savings. Using untreated wastewater in agricultural areas can damage the soil, making it unproductive and harming crops, trees, and fruits. Wastewater pumps are designed to ensure practical and safe transfer. Waste materials can create foul odors or leak during transport, causing environmental pollution and operational issues. These considerations are taken into account when designing wastewater pumps.
 <h2>
Sustainable Wastewater Pumps</h2>
With industrialization and increased production, water pollution has risen. Waste is often discharged into rivers and lakes, polluting water sources and reducing the availability of potable water. Advanced wastewater pumps carry out effective cleaning processes. MASDAF, which has pioneered innovations in the pump sector, has developed wastewater pumps that provide sustainable solutions. ENDURO wastewater pumps perform effectively in pressurization. Dirty water often contains solids and large particles, and ENDURO submersible pumps prevent these from reaching the mechanical seal, ensuring long-lasting and safe use. High-tech wastewater pumps quickly detect leaks. Equipped with a water leak electrode, the system gives rapid warnings and continues operation without interruption. MASDAF also offers other series for sustainable solutions. The NM series, used in drinking water treatment plants and State Water Works facilities, provides maintenance advantages. With its centrifugal pump automation system, the NM series can reduce maintenance costs by up to 70%. Modbus communication technology allows the pump to operate at fixed or process-specific values, saving energy and increasing efficiency.
 <h2>
Next-Generation Wastewater Pump Models
</h2>Advancements in technology have improved the performance of machines and systems. MASDAF has brought a new perspective to the pump sector, incorporating many details into its products. The Enduro Pro series is capable of precise wastewater transfer. It operates at 10 bar working pressure with speeds reaching 3600 rpm. Special impellers allow the wastewater pump to treat various types of dirty water, enabling use in multiple applications. Modern materials can be selected depending on the intended usage area, ensuring sustainability. The series features a retractable design, simplifying maintenance and reducing operational costs. Repairs or maintenance can be performed without disassembling the piping system, and rotating parts can be replaced without interrupting operations. The pumps offer different installation options, including coupled and vertical setups, as well as belt-driven alternatives. The wastewater pumps are leak-proof, odor-resistant, and clog-free. They are suitable for areas with active sludge, domestic and industrial waste, water treatment facilities, and flood or stormwater zones. The EnduroPro series ensures smooth operations wherever it is installed. MASDAF offers a wide range of modern technology pumps, including wastewater pumps, allowing businesses to access high-quality equipment and integrate them into their operations.

Wastewater pumps provide sustainable solutions by saving water and reducing costs. Click for detailed information about wastewater pumps.

Wastewater Pumps and Sustainable Solutions

What is an Inline Pump? Wet- and Dry-Rotor Inline Pumps l Masdaf

An inline pump is obtained by connecting the discharge and suction flanges on the same line. It is widely used in many areas, especially in water treatment systems and HVAC systems. Since it has electric control units, it works together with both heating and cooling systems. These systems require electricity during operation. It has many product types, primarily vertical shaft inline pumps. Made from very durable and robust materials, it provides long-lasting benefits to users. It is highly energy-efficient and environmentally friendly. The inline pump is easy to use, offering a high level of convenience. Inline pumps come in two types: dry and wet. <h2>

What is a Dry Rotor Inline Pump?
</h2>Inline pumps with a dry rotor use air for cooling. Dry rotor pumps help reach capacities that wet pumps cannot achieve. This technology is often used in air handling units and cooling facilities. All parts in contact with the fluid are positioned separately from the motor. There are different types: CSV, INM, Genio INM, and INMD. CSV series dry rotor pumps have a dual suction feature. INM has a standard motor. Installation and maintenance are easy due to simple assembly and disassembly. Genio INM models come with standard electric pumps and a mechanical seal. INMD inline pumps have twin-mounted pumps and pressure outlets. Each product type has different power levels, so it is important to have detailed information about them.
 <h2>
What is a Wet Rotor Inline Pump?
</h2>Wet rotor pumps circulate the liquid around the rotor to provide pressure. This helps lubricate and cool the rotor shaft, ensuring smooth operation and preventing overheating. It offers long service life. There are two types: AX and AD-Modul. AX series products provide ease of use with light indicators and have motor protection to prevent damage. Inline pumps have power limitation features. AD-Modul types offer high energy efficiency and can be controlled remotely via smart devices. They have user-friendly control systems and can be integrated with different systems.
 <h2>
Key Factors in Choosing an Inline Pump</h2>
The price of high-performance inline pumps depends on the services they offer, the technology, and features they include. Before purchasing, select the product that best meets your needs. Models equipped with the latest technology may be more expensive but offer high efficiency. Another factor affecting pump prices is the pressure applied; higher pressure allows the pump to reach deeper.

MASDAF offers a wide range of high-quality and safe pumps. Manufactured with internationally compliant materials and offered at competitive prices, MASDAF provides inline pumps and other types of pumps, including hydro-pumps, for all your needs.

Inline pump types, used in many areas such as water treatment systems and HVAC systems, can be explored in detail by clicking here.

What is an Inline Pump? Wet- and Dry-Rotor Inline Pumps

Efficient Use of Water Resources – World Water Day l Masdaf

Water is one of the most important resources for the continuity of life. Unconscious water use leads to the depletion of a vital natural resource for all living beings. Proper use of natural resources is crucial for the well-being of future generations and the preservation of nature. For this reason, the United Nations has designated March 22 as World Water Day to emphasize the importance of water. The purpose of this special day is to highlight the importance of using resources correctly. One way to use water effectively and prevent waste is through conservation. Today, with developing technology, there are various ways to use resources more efficiently. Technological devices such as smart pump systems make it possible to save water and use resources effectively. <h2>

The Importance of Water as the Source of Life
</h2>Water is a fundamental necessity for all living beings. Incorrect water use and waste by humans lead to a decrease in water availability. Failing to use this vital natural resource properly can result in severe water crises in the future. Turkey is one of the countries where proper water management is essential. Climate crises have caused water problems in many countries around the world. Even countries that currently do not face issues may encounter water shortages in the future. The solution to this is water conservation. If this critical natural resource diminishes, billions of people will struggle to access water. Without clean drinking water, polluted sources may be used instead. Many children worldwide fall ill due to lack of access to clean water. Polluted waters contain various bacteria and parasites that enter the body and pose serious health risks. For these reasons, millions of children and adults lose their lives or fall ill each year. This problem threatens not only humans but all life. Animals may be unable to access water, and plants cannot obtain the resources they need. The danger of drought affects all living beings, making water conservation crucial for protecting the future of the planet.
 <h2>
Causes of Water Scarcity
</h2>There are several reasons for the depletion of natural resources. One of these is the increasing population. As the population grows while water resources remain constant, the amount of water available per person decreases. Incorrect irrigation methods and machinery on agricultural lands also cause significant water wastage. Another cause is careless consumption. Assuming water is an unlimited resource, excessive use occurs in homes and businesses. Because resources are limited, unnecessary and excessive consumption leads to problems. Another factor is the failure to choose products with the right technology. There are smart systems designed for water conservation. These technologically advanced devices allow efficient and effective water use, enabling recycling and making water savings possible.
 <h2>
Measures for Efficient Use of Water Resources
</h2>To save water and use resources properly, several methods can be applied. One of these is using water-saving pumps. An important consideration is greywater, or domestic wastewater. If domestic wastewater is not recycled, it becomes unusable. Without recycling, it falls into the dirty water category and cannot be used anywhere. Developed pump mechanisms allow up to 50% of these resources to be reused. Making half of a wasted natural resource functional is significant. MASDAF's HEXA series pumps are designed for high water efficiency. The vertical pump variant has a stainless steel structure and is resistant to pressure. Equipped with intelligent protection systems, these environmentally friendly pumps allow a large portion of domestic wastewater to be reused. Recycled water can be used in toilet tanks or for garden irrigation. Eco-friendly equipment used in wastewater treatment plants also provides economic savings. MASDAF's UKM series pumps operate with high efficiency. These pumps, which provide up to 50% water savings, reduce operational costs and simplify work. The UKM series not only lowers operational expenses but also reduces maintenance costs. With smart pumps, up to 50% water savings can also be achieved in agriculture. Correct product selection is crucial for maximizing water conservation. By evaluating all factors such as the structure and properties of the water to be pumped, suitable models can be chosen, ensuring maximum efficiency and savings. MASDAF develops pumps that understand the importance of water and provide solutions for conservation. As a leading company in the pump sector, MASDAF offers products that enable water savings in offices, homes, and agricultural areas. World Water Day on March 22, 2022, reminds us of the need to protect water resources to preserve life. To make this special day meaningful, water-saving products can be used. You can explore MASDAF’s pump options and choose products that benefit both the environment and your business.

Learn what Masdaf is doing for the efficient use and conservation of our vital resource, water, on World Water Day, March 22.

Efficient Use of Water Resources – World Water Day

Domestic Booster Pump & Residential Booster Pump l Masdaf

A booster pump is a type of pump used in areas where water pressure is insufficient, providing pressurization for water. As an automatic pump, a booster pump ensures that water reaches the upper floors of a building. It can be used in many types of structures. A booster pump for home use is referred to as domestic. Depending on the system setup, a booster pump can be used alone or with a water tank.
 <h2>
What is a Booster Pump?
</h2>A booster pump consists of a pump and control equipment. It is mostly electrically powered and used when the city water network is insufficient. The main component is the pump, while the other parts include a control panel, pressure gauge, pressure switch, expansion tank, check valve, and ball valve. These additional components serve as control equipment. Unlike traditional pumps, booster pumps have a more comprehensive structure with extra equipment. Booster pumps can operate in multiple ways: the pump can be connected directly to the network or a tank. When connected to the network, interruptions affect the pump and reduce efficiency. The typical setup uses an expansion or water tank: water passes through a filter into the tank, and the pump then distributes it. Booster pumps can be small, horizontal, vertical, or packaged. Packaged pumps increase both water pressure and flow rate. Domestic booster pumps fall into the small category, being compact and low-volume. Mechanisms can be horizontal or vertical, with vertical models having main and spare parts for backup in case of issues.
 <h2>
Where Are Booster Pumps Used?
</h2>Booster pumps are used to increase water flow from lower to upper floors. Low pressure results in slow water supply to upper floors, which booster pumps resolve. Common usage areas include:
 <ul><li>Residential complexes&nbsp;</li><li> Homes&nbsp;</li><li> Schools&nbsp;</li><li> Low or high-rise buildings&nbsp;</li><li> Village houses&nbsp;</li><li> Fields&nbsp;</li><li> Irrigation facilities&nbsp;</li><li> Industrial plants</li></ul>

In general, booster pumps are suitable wherever water pressure is insufficient. Rural areas often need them due to low pressure away from the network. High water consumption and tall buildings also require booster pumps. Another reason for use is to maintain water supply during outages. <h2>

What is a Domestic Booster Pump?
</h2>Booster pumps vary according to where they will be used. Domestic booster pumps are suitable for homes. For home use, installation and electrical connection are usually sufficient. Domestic pumps come in single-phase and three-phase models. Single-phase systems have two cables: neutral and phase. Three-phase systems have four cables: three phase and one neutral. Therefore, the electrical connection diagram differs between single-phase and three-phase models. Single-phase models are generally for residential use, while three-phase pumps are more suitable for industrial applications. Some domestic booster pumps have two pumps; the second pump provides additional pressure when one is insufficient, increasing flow and pressure.
 <h2>
Where Are Domestic Booster Pumps Used?</h2>
Home booster pumps are typically used for one floor or a single apartment. They can also be used for water transfer or garden irrigation. Domestic models vary in tank capacity and features. High-capacity pumps can serve as a water tank; when water is depleted, the pump activates. Low-capacity pumps are mainly used with a balance tank, operating when a faucet is opened and stopping when closed. Models connected directly to the network without a tank are hydromatic. Power (kW) varies; 0.75 kW single-phase booster pumps are commonly used for homes. MASDAF, operating since 1977, is a leading manufacturer of pumps and booster pumps, offering reliable, quiet, and professional domestic models.

Booster pumps have different options depending on where they will be used. Click here for detailed information about domestic booster pumps.

Domestic Booster Pump & Residential Booster Pump

What is the EN 12845 Standard? l Masdaf

Among the accidents that may occur in homes or workplaces, fires should be considered separately in terms of risk level. Precautionary measures against possible fires reduce the material impact of a fire. Especially in industrial areas, such disasters can threaten many lives and also cause significant financial loss. Both in Turkey and worldwide, specific standards and regulations have been established for issues that threaten human health or safety. Compliance with these standards is periodically audited by independent organizations.
 <h2>Scope of EN 12845</h2> The EN 12845 Standard is a regulation that should be considered in this context. Businesses that comply with this standard take an important step in strengthening their corporate image. This regulation encompasses comprehensive life protection measures. It provides guidelines for the design, installation, and maintenance of fire sprinkler systems and serves as a reference and guide. It ensures that the sprinkler systems of buildings or workplaces operate in the safest and most efficient manner. The minimum conditions to be applied in Turkey are officially specified.

Fire safety measures are considered an integral part of building technology. In modern buildings, strict precautions against fire are observed. With this nationwide regulation, both life and property are partially protected. Establishing a unified regulation in Turkey is also important in terms of European norms.
 <h2>Fire Pumps</h2> Regulations under the “Regulation on Fire Protection of Buildings” are periodically updated, with the last update published in the Official Gazette on July 9, 2015. Beyond automatic sprinkler systems, stages such as design, installation, and maintenance form the official basis of fire protection. The EN 12845 standard, published by the European Standards Committee, is composed of twenty sections, with the tenth section specifically addressing fire pumps.

According to the standard, fire pumps must have a Q-H curve, and the pressure values must correspond to the specified flow rates. If there are two pumps, each must independently maintain the required flow and pressure. In facilities with three pumps, each must provide half of the required flow. Pumps must be dedicated solely to fire protection and kept in a fire-resistant area for at least 60 minutes. Positive suction pressure regulations may apply, while negative suction situations should be avoided. Special provisions exist for submersible pumps, and suction pipe diameters must comply with specific standards. Pump activation tanks ensure operation even in case of leakage, keeping the water supply constantly filled.
 <h2>Control Panels</h2> The standard also specifies requirements for control panels. Electrical supply must be permanent and dedicated solely to the pump set. All cables must be fire-protected and continuous without splicing. Fuses inside the panel must meet a minimum 20-minute duration criterion. Manual activation and stopping of motors must be possible.

EN 12845 describes both the characteristics of fire pumps and control panels, with special attention to electrical wiring. Compliance is reinforced through training and inspections, covering both pre- and post-fire conditions.
 <h2>Impact on Building Permits</h2> Audits by independent organizations result in detailed reports to determine compliance. Non-compliance can affect building permits, especially during project modifications or new constructions. Businesses may have a limited time to rectify deficiencies to obtain the permit. Proper compliance protects corporate image and avoids time and financial loss.

Following the standard is critical for the safety of hundreds of workers in large facilities. If Turkish or EU standards cannot be directly applied, other globally recognized standards may serve as reference. Specific areas highlighted by EN 12845 include metros, helicopter pads, stadiums, and airports. Responsibility is shared among authorities issuing permits, employers, architects, engineers, and investors. Construction-related issues fall on the building company, while operational problems are the responsibility of the facility owner. All responsibilities ultimately relate to potential fire damage.
 <h2>Consulting Support </h2>Since 2007, fire safety regulations have been strictly enforced. In case of any project deficiencies, you may be held accountable. Professional consulting firms provide guidance and monitor the latest versions of regulations, advising on necessary actions for compliance.

What is the EN 12845 Standard?

What is a waste water pump? Waste water pump calculation l Masdaf

Water is among the indispensable and essential resources of life. Thinking that this resource is infinite and using it wastefully is one of humanity's greatest mistakes. Although attention has long been drawn to water among diminishing natural resources, humanity still has a long way to go on this issue. As industrialization increases, we also see that certain risks regarding water arise. Wastewater pumps, which clean and transfer wastewater, delay some dangers at least to some extent.
 <h2>
General Features of Wastewater Pumps</h2>

Wastewater pumps can also be called sewage pumps or septic pumps. These pumps, which are extremely important for city infrastructure, are also used in industrial areas. The successful transfer of sewage and domestic wastewater is carried out by these pumps. Today, wastewater pumps are easily used in buildings, hotels, hospitals, dormitories, and schools. They are highly effective in evacuating wastewater containing solid particles of approximately 30-50 mm. Unfortunately, these wastewaters may contain various textile pieces, plastic fragments, or papers.

Wastewater pumps are designed entirely for this evacuation process. When examined, it can be seen that different types have emerged depending on developing technology. For example, versions with shredding blades attract significant interest. Solid particles are conveniently broken down and then transferred. Wastewater pumps can be divided into different types according to application areas and features. Their price also varies depending on these features and other criteria. Generally, in terms of price-performance, they can be considered very important devices.

Wastewater pumps naturally operate in a dirty environment. This requires care when removing the pump from its operating area. To prevent such problems, wastewater pumps with slide systems have been developed. If you do not want your pump to be damaged during transfer operations, you can prefer such systems. With the slide system, the pump is pulled up after the process is completed. Necessary maintenance or repair is performed immediately afterward. This also prevents the discharge pipes from needing to be pulled up. Another feature of wastewater pumps is that they can be seamlessly integrated into wastewater collection tanks or septic tank chambers.

When the wastewater collection level is full, the float above the pump activates it. When water is about to run out, the float sends a stop signal. This cuts off the supply to the motor, and the pump stops suddenly. This system continues consistently. The transfer of accumulated water is thus successfully completed. It is important to install check valves at the immediate outlets of such pumps. The check valve should especially be of the collective type, as it prevents water from backflowing. It plays an important role in maintaining system safety.

Wastewater pumps are generally preferred in cases where sewer systems are not present or are not actively used. Since the non-use of sewer systems is rare, wastewater pumps are not always needed. Pumps specially designed for collecting wastewater from toilets, pipes, or sewage water produce highly efficient results. Thanks to their special structure, they prevent the sharp odor of wastewater from escaping. These pumps have their own dedicated collection tank. Control units are also provided with the product.
 <h2>
Shredding Blades Are Very Functional</h2>

In buildings or facilities located under city sewer systems, ideal wastewater pits are opened. Wastewater pumps are placed in this area, including one spare. Pumps with shredding capabilities are generally preferred first. In some cases, solid materials like tissues may get stuck on the blades and prevent them from rotating. Shredding blades are important for such possibilities. Wastewater pumps with shredding features pulverize any solid material that comes in front of them. Materials stuck to the blades can eventually burn the pump windings. Wastewater pumps should be located close to the manhole. This is important for both efficiency and safety. Architects need to pay special attention to such situations.
 <h2>
Points to Consider
</h2>
It is recommended that wastewater pumps be placed in storage areas or warehouses. Unless necessary, these devices should not be placed outdoors or in neighborhood corners. When choosing a wastewater pump, sensor types should be prioritized. As mentioned above, these sensors will control the pump's operation and prevent noise. With sensors, the pump will not continuously activate. In addition, galvanized pipes are strongly recommended over PVC pipes. Sleeve pipes may require slightly more labor for connections. Minimizing the number of elbows is also an important detail.
 <h2>
Wastewater Pump Calculation</h2>

As known, pumps are generally used in positions where elevation alone is insufficient. To do this correctly, certain calculations must be applied. At this point, the relationship between head and flow rate should be focused on. Flow coefficients may vary according to the building type. For example, for schools and hospitals, it is taken as 0.7; for showers, 1.0; for small office-type areas, 0.5; and for large facilities, 1.2. Detailed tables exist for head values. These tables include information on wastewater quantity, wastewater unit, terminal fittings, and the diameter of the connection pipe.
 <h2>
Possible Failures in Wastewater Pipes
</h2>
Thanks to technological advances, wastewater generated in homes or other areas can be transferred using special pumps. Wastewater pumps, which transfer this water to manholes and save the city from a major problem, also make a significant contribution to large treatment plants. But what are the possible failures of wastewater pipes?
 <ul><li>
Cracking due to overheating,
</li><li>Change in the rotation direction of pipe elements,
</li><li>Incorrect type of oil selected,
</li><li>Wear of seals in the pump bearing.
</li></ul>

What is a waste water pump? Waste water pump calculation

How to Choose a Fire Pump? l Masdaf

Fire pump selection is of great importance to fully ensure the fire protection standard. The need for a fire pump should be determined early – ideally, a comprehensive project should be developed first. In today’s article, we will explain the process of determining whether a fire pump is necessary and how to select a fire pump that meets the required pressure and flow.
 <h2>
When is a Fire Pump Needed?
</h2>
A fire pump is required to provide the flow and pressure demands to fire suppression systems when the water supply is insufficient. To determine whether a fire pump is needed, the fire suppression system requirements should be compared with the available water source. If the water source cannot meet the demand, a fire pump is required. Conversely, if the water source can meet the pressure and flow requirements, a fire pump is not needed.

Water can come from various sources, including public water mains, dedicated fire protection water systems, elevated tanks, etc. Each scenario requires a slightly different approach, but it is important to first determine whether the water source can meet the flow requirement.

When connecting to a fire main, hydrant flow tests can be used to analyze the source. Static and residual pressures, along with flow data, determine whether the supply system can meet the required water demand. To minimize errors from hydraulic calculation estimates, it is ideal to keep these test data as close to the fire suppression system riser as possible.

When determining the worst-case scenario, consider flow demands from all fire suppression systems. In this example, the worst-case flow demand is an automatic sprinkler system in an office building.

Sprinkler demands are calculated according to NFPA 13 based on factors such as design area, density, hose stream allowance, excess, roof slope / pre-action system.
 <h3>
Example: 5-story office building with light hazard</h3>
Sprinkler system: 0.1 gpm / ft² × 1500 ft² = 150 gpm
Sprinkler system + 30% allowance: 150 × 1.3 = 195 gpm
Hose: 100 gpm
Total: 295 gpm

The calculation shows a flow demand of 295 gpm. If the connected fire main cannot provide this flow, a water tank and pump should be provided to supply the sprinkler system. With known flow requirements, the next step is to calculate the pressure needed to operate the sprinkler system.

First, consider the pressure required to meet the system demand and for the most remote sprinkler; then add all various pressure losses back to the source. The minimum pressure is defined by NFPA 13, typically 7 psi.

Sprinkler system pressure can be estimated at ~20 psi. This is a good guide when supplying simple sprinkler systems. As sprinkler piping becomes more complex due to unusual floor layouts, obstacles, and uneven ceiling heights, the number increases accordingly.
 <h2>
Role of the Sprinkler Riser
</h2>
Friction losses in the pipe from the sprinkler riser to the water source can be estimated using the Hazen-Williams formula defined in NFPA 13. Hazen-Williams calculates friction loss per foot; this value can be multiplied by the total pipe length to determine the lost pressure.

Height is an important factor for pressure loss, as overcoming gravity requires a significant amount of pressure: 0.433 psi per foot can be assumed for the required height. Important features such as backflow preventers and strainers should also be considered, as pressure is lost as water passes through these devices. <h2>

Fire Pump Selection</h2>

Fire pumps should be selected based on nominal flow and pressure capacities. In our example, the required flow is 295 gpm. Fire pumps should operate at 150% of their nominal flow. Therefore, there is no need to select a pump rated exactly for the flow demand; this would result in an oversized pump. For example, if the flow demand is 295 gpm, a 200 gpm nominal fire pump can technically provide this flow.

Many fire pump manufacturers provide selection tools on their websites where required flow and pressure can be entered, showing pumps that meet these requirements. NFPA sets limits for pump performance, ensuring pump curves are not too steep and that pressure drops gradually.

As pumps operate beyond their nominal flow, the pressure they can provide decreases. Some pumps have flat curves where pressure slowly decreases as flow increases; others lose pressure faster. It is important to consider where the flow demand falls on the pump curve. At the flow demand point, the pressure increase provided by the pump must be higher than the required pressure.

For final verification, place the required flow and pressure point on the manufacturer’s pump curve. This point must be below the pump curve for the pump to meet the system requirements.

There are likely many pumps that meet performance requirements, but having pressure and flow requirements ensures the required flow and pressure point is satisfied.
 <h3>
How to Determine if a Fire Pump is Needed:
</h3><ul><li>
Gather information about the fire water supply.
</li><li>
Calculate the required flow.
</li><li>
Calculate the required pressure.
</li><li>
If the supply cannot meet the demand, provide a fire water tank and fire pump.</li><li>

If pressure cannot be met, obtain a fire pump.</li><li>

If the supply can meet the required pressure and flow, no fire water tank or pump is needed.
</li></ul> <h3>
How to Select a Fire Pump:
</h3><ul><li>
Gather information about the fire water supply.</li><li>

Calculate the required flow.
</li><li>
Calculate the required pressure.

Calculate the required pressure increase.
</li><li>
Select a pump where the flow demand is 100–150% of nominal flow, preferably 115–135%.
</li><li>
Select a pump with a performance curve that provides sufficient pressure increase at the flow demand.</li></ul>

Fire pump selection is of great importance to fully ensure the fire protection standard. Click for fire pump selection.

How to Choose a Fire Pump?

What is a fan, what is it used for? l Masdaf

Devices that create a pressure difference to enable the flow of air are called fans. The dictionary meaning of “fan” is “cleaner.” Fans blow cold or hot air in a balanced way. They can also be defined as ventilation tools, propellers, propeller blades, or ventilators. Fans are electrically powered devices used to clean the air. A fan has a moving propeller that acts on the air. It gives the fan static and kinetic energy, allowing it to perform its function. Ventilation fans vary according to their application. They are classified as intake return fans, exhaust fans, and supply fans. Intake fans reduce the pressure of the environment where they operate and are used in systems that mix indoor and outdoor air in HVAC. Intake fans draw air from the environment and are therefore also called aspirators. Exhaust fans work with a mix of indoor and outdoor air. In systems where intake fans are not used, exhaust fans are present. Exhaust fans discharge a smaller amount of return air than the intake air, allowing positive pressure inside. Supply or blowing fans, also called ventilators, are connected to an air duct and create positive pressure in the duct, enabling air movement. These fans also circulate the air in the environment and are therefore also called ventilators. <h2>

What does a ventilation fan do?
</h2>
A ventilation fan is used to remove unwanted dirty, hot, or cold air from a closed space. Air passing through the ventilation duct is replaced with clean air, allowing dirty, hot, or cold air to exit while fresh air enters. Ventilation fans are usually installed at the entrance of the ventilation duct. They are commonly used in places like parking lots, shopping malls, and hospitals. <h2>

Types of fans

Fans </h2>vary according to their usage. The most common types of ventilation fans include axial fans, centrifugal (squirrel cage) fans, radial fans, hood fans, chimney fans, exhaust fans, bathroom fans, smoke exhaust fans, industrial fans, cabinet fans, blowers, bellows, high-pressure fans, medium-pressure fans, and low-pressure fans. When selecting a fan for an air distribution system, it is important to analyze airflow (air volume) and account for pressure losses in ducts, dampers, louvers, filters, and air washers. Static pressure should be determined. Direct-drive fans are ideal in most cases, and variable flow systems can use frequency inverters if compatible.
 <h2>
Fan maintenance
</h2>
Periodic maintenance not only extends the life of the device but also ensures more efficient operation. During maintenance, belts should be checked, and fan bearings lubricated if oil levels are low. Dust, dirt, and debris can accumulate on the fan blades due to airflow, affecting both health and performance. Fan blades and filters should be cleaned regularly to maintain efficiency.
 <h2>
GeniO intelligent pump drivers
</h2>
GeniO intelligent pump drivers are directly mounted on the motor, eliminating the need for an external control panel and reducing cabling, creating a more compact and portable design.
 <ul><li>Power range: 0.75 – 18.5 kW
</li><li>Input voltage: 380 V three-phase
</li><li>Input frequency: 50-60 Hz </li><li>Output frequency: 0-600 Hz&nbsp;</li><li>Protection class: IP 65&nbsp;</li><li> LCD screen displays real-time pressure, frequency, current, motor speed, output voltage, output power, analog sensor values, and set pressure.&nbsp;</li><li> Easily programmable&nbsp;</li><li> 2 digital inputs and relay outputs&nbsp;</li><li> 2 analog pressure transmitter inputs; one acts as backup if the other fails
</li></ul>
Compatible frequency inverter transmitters:4-13 V working voltage, 0-10 V output&nbsp; 10-30 V working voltage, 4-20 mA output&nbsp; 10 V working voltage, 4-20 mA output&nbsp; Provides 24 V power for external devices Set pressure can be easily adjusted&nbsp; Multiple pumps can communicate via RS 485 using Modbus protocol, allowing up to 6 pumps to operate together&nbsp; Motor rotation can be changed via software&nbsp; Emergency mode allows operation at a set frequency without sensors&nbsp; One frequency inverter with relay output can control two pumps&nbsp; Programmable display of adjustable parameters&nbsp; Adjustable acceleration and deceleration times&nbsp; Error codes displayed on screen&nbsp; Antifreeze feature&nbsp; Adjustable max/min operating frequency&nbsp; Cooling fan can operate automatically or continuously&nbsp; Password protection prevents unauthorized access&nbsp; In multi-pump systems, a failed pump is bypassed and backup activates automatically&nbsp; Protected against high and low pressure <h2>
Applications</h2>

Intelligent motor-mounted inverters adjust motor frequency to maintain system pressure, saving energy compared to pressure switch systems. They can be used in systems requiring constant pressure, from single pumps to multi-pump systems.

Devices that create a pressure difference to enable the flow of air are called fans.

What is a fan, what is it used for?

What is a flange? What are the applications of a flange? l Masdaf

What does a flange mean? Let’s define it briefly. A flange is a construction element used to join two machines or installation components in a leak-proof manner. It is a standardly manufactured component. The word flange comes from German. Its German equivalent is *Flansch* (pronounced flange). Depending on its usage, it can be made from different materials such as iron, copper, or brass. Flanges are mainly classified according to pressure and size. They generally have a circular shape. A flange is formed by connecting two circles with bolts. The number of bolt holes is not fixed; it can change according to the pressure class. As mentioned above, flanges are usually circular, but rarely they can also be designed as square or elliptical. There are many different flange types worldwide according to various standards.
 <h2>How are flange dimensions determined?</h2> When determining the dimensions of a flange, certain factors should be considered. Some of the important factors are:
 <ul><li>The pressure value of the installation</li><li>The temperature value of the installation </li><li>The material of the flange&nbsp;</li><li> The pipe diameter of the installation
</li><li> </li></ul>
In addition, the five main values affecting the flange size are:
<ul><li>Inner diameter (d dimension)&nbsp;</li><li> Outer diameter (D dimension)&nbsp;</li><li> Bolt circle diameter (C dimension)&nbsp;</li><li> Thickness (T dimension)&nbsp;</li><li> Number of bolts</li></ul> <h2>What are the types of flanges?</h2>There are many flange models in different standards and types. Some of them can be listed as follows: <ul><li>&nbsp;Blind flange&nbsp;</li><li> Threaded flange&nbsp;</li><li> Socket welding flange&nbsp;</li><li> Slip-on flange
</li></ul>
A note about one of the most frequently asked and curious flange types: blind flange. What is a blind flange? Its English equivalent is Blind Flange. Its meaning in Turkish is kör flanş. It is a type of flange used to blind a pipeline, that is, to close the pipe end.
 <h2>What is the purpose of a flange?</h2> A flange is used to join installation components in a leak-proof manner. It has many applications. The most common usage is in piping systems, but they are also used on machines. They are used to connect machine parts together. Flanges can be connected to the installation or machine either by welding or threading. One of the biggest problems with flanges is ensuring leak-proofing. One cause is incorrect installation. If errors occur during installation, leaks are inevitable. To reduce damage and ensure leak-proofing, bolts should be tightened with controlled torque, which significantly prevents potential failures or problems.
 <h2>How is a flange manufactured?</h2> The flange production process is divided into two parts: forging and casting. Cast flanges are lower in cost and require only simple processing. Forged flanges, however, may have air holes, cracks, or certain manufacturing defects, so they may not be perfectly smooth. The advantage of forged flanges is that they can be forged into various shapes. They are also low in cost. Forged flanges generally have lower carbon content than cast flanges, so they are less prone to rust. Flange materials include stainless steel, cast iron, aluminum, brass, bronze, plastic, and similar materials. The most commonly used material in flange production is forged carbon steel.

A flange is a construction element used to join two machines or installation components in a leak-proof manner.

What is a flange? What are the applications of a flange?

What is air conditioning? What is the purpose of air conditioning systems? l Masdaf

What is air conditioning? Air conditioning systems adjust the temperature, humidity, cleanliness, and air movement of an enclosed space according to human health and comfort. The term air conditioning comes from the English phrase “air condition.” In our language, both the terms *air conditioning* and *climate control* are used. Air conditioners and cooling systems cool the air of the environment, bringing working conditions to optimal levels. The concept of air conditioning generally refers to the process of removing indoor air humidity for cooling or thermal comfort.
 <h2>The importance of air conditioning</h2>
Looking at the history of air conditioning systems, we go back to the years before technology entered our lives. In ancient times, storing food in caves or underground to prevent spoilage also served as a form of air conditioning. With settled life, air conditioning systems were introduced to heat or cool buildings and homes. Initially applied as a necessity, today, with technological advancements, production is carried out for human benefit. Nowadays, air conditioning devices are indispensable in every aspect of life. Air conditioning is used both in summer and winter. In summer, it is used for cooling and maintaining humidity balance, while in winter, it is used for heating. In both seasons, it circulates air and removes dust, dirt, and germs. During installation, an environmentally friendly approach is preferred, which adds value for users.
 <h2>How air conditioning systems work
</h2>
Cooling systems operate on the principle of evaporating a liquid refrigerant at a desired temperature under a specific pressure and then converting it back to liquid form. One type of pump used for heating and cooling is the inline pump. Inline pumps, with suction and discharge flanges on the same line, can be directly connected to the system. Inline pumps are used in water treatment systems, industrial applications, and air conditioning systems (heating and cooling). There are two types of inline pumps: wet-rotor and dry-rotor inline pumps.
 <h2>Wet-rotor inline pumps</h2> Wet-rotor inline pumps are divided into three groups: Modul A series, AX series, and AD Modul A-D series. <ul><li>Modul A series: MAS pumps with “Eco Design” label provide up to 80% electricity savings. Replacing old pumps with MAS Modul A pumps pays off quickly. With an EEI ≤ 0.17, Modul A pumps are in the “Best in Class” category, offering over 80% energy and cost efficiency compared to traditional uncontrolled pumps in efficiency class D. The interface module allows integration with all building control systems easily, and the remote adapter has Wi-Fi capability for wireless communication with smartphones.</li></ul> <ul><li>AX series: User-friendly pumps with simple control buttons and indicator lights. Equipped with internal motor protection, no external motor protection is needed. They feature fault and operating messages, quiet operation due to durable flat bearings, high-temperature resistance, improved water entry for bearing lubrication, and adjustable power limitation.</li></ul> <ul><li>AD Modul A-D series: Provides up to 80% energy savings. With EEI ≤ 0.17, they are highly efficient. Interface module allows simple integration with building control systems, and the remote adapter has Wi-Fi for wireless smartphone communication. Suitable for almost all performance categories and applications in heating circulation.</li></ul>
<ul><li>Dry-rotor inline pumps: Dry-rotor inline pumps are divided into CSV, INM, Genio INM, and INM Duo series.&nbsp;</li></ul> <ul><li>CSV series: Double-suction vertical inline centrifugal pump with two grease-lubricated rolling bearings and mechanical seal for leak prevention. High efficiency with double-sided suction impeller design, compliant with IEC, DIN, VDE, and TSE standards, capable of use with variable frequency drives.</li></ul> <ul><li>INM series: Single-stage, non-self-priming inline centrifugal pumps with standard motors and mechanical seals. Flanges comply with DIN 2535 PN 16 pressure class, suction and discharge flanges are identical and on the same axis, equipped with pressure taps. Axial loads are balanced with rear rings and dynamically balanced impellers. Motor coupled to pump via adapter and flange; easy maintenance and installation.</li></ul>
<ul><li>Genio INM series: Inline pumps with motor-mounted frequency inverters, compact design, compatible with various sensors, quiet and safe operation. Flanges follow DIN 2535 PN 16 pressure class.</li></ul> <ul><li>INM Duo series: Twin-mounted inline pumps formed by combining two single-stage non-self-priming pumps. Manufactured with standard motors and mechanical seals. Flanges comply with DIN 2535 PN 16, suction and discharge flanges are identical and aligned, with pressure taps on both flanges.
</li></ul>

Air conditioning is the process of adjusting the temperature, humidity, cleanliness, and air movement of an enclosed space according to human health and comfort.

What is air conditioning? What is the purpose of air conditioning systems?

What is a sprinkler irrigation system? l Masdaf

A sprinkler irrigation system is an irrigation method that mimics rainfall. Water is distributed through a pipe system by pumping and then sprayed into the air.
 Briefly about sprinkler irrigation systems: Sprinkler irrigation systems provide the water needed to soften the soil. In addition to supplementing water consumed by crops, they contribute to agricultural activities. The main goal of a sprinkler irrigation system is to reach each plant and supply the required amount of water. A sprinkler irrigation system consists of several components. Primarily, there is an irrigation pump unit, which provides pressure to transmit water from the source to the pipe system. Sprinklers, which convert the water jet into droplets, can distribute water to different areas of the field manually or mechanically, ensuring even water distribution.
 Application conditions of sprinkler irrigation: When properly operated, sprinkler irrigation systems are highly beneficial. They are advantageous on uneven, sloped, or rough terrain. They work effectively on soils with high infiltration rates or for shallow-rooted plants. This irrigation method requires some initial investment and energy costs, but because it requires less labor, it is advantageous in areas where labor is expensive. Sprinkler systems are ideal for crops such as grains, legumes, wheat, sugarcane, vegetables, fruits, cotton, and peanuts. They are also suitable for field and tree crops, flowers, spices, and herbs. One of the main advantages of sprinkler irrigation is efficient water use, reducing water loss. Even water distribution increases productivity and ensures balanced growth among plants, improving crop yields.
 Advantages of sprinkler irrigation systems:<ul><li>High water-use efficiency, making it ideal where water is limited.&nbsp;</li><li> Allows irrigation on sloped or uneven land without causing erosion. </li><li>Although the initial cost is high, it saves labor costs in the long term.&nbsp;</li><li> Provides efficient irrigation for shallow soils. </li><li>Can wash away dust or harmful pests in coastal areas.&nbsp;</li><li> Fertilizers soluble in water can be applied with irrigation without extra labor.&nbsp;</li><li> Protects delicate plants from frost or heat.
</li></ul> Disadvantages of sprinkler irrigation systems:&nbsp;<ul><li> High initial installation cost, especially for fixed systems.</li><li>Water distribution can be affected by wind, reducing efficiency.&nbsp;</li><li> Requires pumping power, which may increase fuel consumption.&nbsp;</li><li> Water may evaporate under high temperatures.
</li></ul>
High-pressure centrifugal pumps can improve the efficiency of sprinkler irrigation systems. OMKV Series High-Pressure Multistage Centrifugal Pumps:
The OMKV series are vertical, multistage, non-self-priming centrifugal pumps with separable stage casings. The impellers are dynamically balanced, single-entry, closed type, with shafts supported by bearings on both ends. Axial force is balanced with balance holes, with remaining force carried by ball bearings. Optional replaceable wear rings are available. The OMKV series includes types 32, 40, 50, 65, and 80, with 2–14 stages. Pumps and motors are coupled on a common frame with an elastic coupling. Standard configuration: discharge flange on top (motor side) and suction flange at the bottom. Rotation is clockwise when viewed from the motor side.
 Applications of OMKV series pumps:<ul><li> Pumping clean or slightly contaminated water&nbsp;</li><li> Drinking water networks&nbsp;</li><li> Pressure systems in high-rise buildings and industry&nbsp;</li><li> Water treatment plants&nbsp;</li><li> Fire-fighting systems&nbsp;</li><li> Boiler feed and condensate systems&nbsp;</li><li> Healthcare and cleaning sectors&nbsp;</li><li> Industrial applications&nbsp;</li><li> Water distribution systems&nbsp;</li><li> Shipping, mining, and energy sectors&nbsp;</li><li> Irrigation systems&nbsp;</li><li> Central heating systems </li></ul>

A sprinkler irrigation system is a type of irrigation that mimics rainfall. Water is distributed through a pipe system by pumping and then sprayed into the air.

What is a sprinkler irrigation system?

What is a blower, how is it selected, and what are its applications? l Masdaf

A blower (pronounced “bılovır”) is equipment that transfers air in a ventilated environment at high flow rates or low pressure. It rotates the fan using the force from a motor. Blowers can operate either as a blower (forcing air) or as a vacuum. The fan inside the blower rotates and draws air from the intake. The trapped air is then pushed toward the outlet, completing the blower’s function. Blowers are mainly used for transporting air. The air drawn into the blower must pass through a filter before being expelled; otherwise, dirt can accumulate on the lobes and inside the housing, causing wear. This wear can reduce the blower’s capacity and efficiency. Blockages may occur at the intake or discharge, so a safety valve and proper flow control are necessary. A blower should not be reversed, as failure to intake air can shorten its lifespan and decrease efficiency.
 Differences between fans and blowers

Both are used for air circulation but have different characteristics. A fan affects the air around a room or area, while a blower focuses on a specific point. Fans act over a wider area; blowers are more targeted. Fans consist of blades that move air, producing low-pressure airflow. Blowers are similar to fans in generating airflow but differ because they provide air at a specific location. Fan pressure ratios are usually below 1.1, whereas blower pressure ratios are around 1.1 to 1.2. Fans are classified as axial-flow or centrifugal, while blowers are classified as single-stage or double-stage. Another difference is that fans consist of an electrically powered motor and blades, whereas blowers include a fan, outer casing, inlet, and outlet.

 Factors to consider when selecting a blower Each blower has unique requirements. First, determine the correct location for installation. Measure the area and decide on the airflow direction. Check oil levels when starting the blower for the first time. Inspect bolts, belts, and similar components carefully. Ensure the blower operates smoothly and without excessive vibration.
 Applications of blowers Blowers are widely used. Examples include boiler applications, oven blowers, dust collector blowers, kitchen blowers, exhaust blowers, and ventilation blowers. Benefits of using a blower<ul><li>Provides oil-free air or gas, ensuring regular airflow.
</li><li>Easy to maintain with minimal additional costs.&nbsp;</li><li> Long lifespan.&nbsp;</li><li> Noise can be a concern, but low-noise blower models are available to mitigate this issue.
</li></ul>

A blower is equipment that transfers air in a ventilated environment at high flow rates or low pressure.

What is a blower, how is it selected, and what are its applications?

What are the advantages and disadvantages of solar-powered pumps? l Masdaf

The sun, an infinite energy source, continues to provide many benefits to our lives. Today, we are writing about solar energy, a rapidly developing concept not only in health but also in industry. First, let’s answer the question: what is solar energy? Solar energy is the primary source of energy that heats our world and forms the basis of fossil and hydraulic energy. It is produced by the emission of energy from the sun in the form of radiation into space. Solar energy, which underlies all energy sources on Earth directly or indirectly, allows us to generate heat and electricity through the energy it radiates into the atmosphere.

Today, solar energy is a clean, renewable, and continuous energy source. Solar-powered systems are easily portable and installable. Being environmentally friendly with no polluting waste is another major advantage. Solar energy systems offer convenience in many areas due to no fuel requirement, ease of operation, no mechanical wear, and long-term reliability. Especially in rural areas without electricity networks or where extending the grid is costly, the use of solar energy is increasing. One such equipment is solar-powered pumps, which are now widely used. We will examine their advantages and disadvantages, but first, let’s look at how these pumps work.
 <h2>What is a solar-powered pump?</h2>Solar-powered pump systems are practical, economical, and functional applications of solar energy. They are used to extract irrigation or drinking water in rural areas far from the electricity grid or where grid extension is expensive. These pumps operate independently from the grid using solar energy. Solar-powered pumps save energy, are environmentally friendly, and are preferred for their long lifespan. Like all pump types, solar-powered pumps have advantages and disadvantages, summarized below.
 <h3>Advantages of solar-powered pumps:</h3><ul><li> The primary advantage is energy savings.&nbsp;</li><li> Environmentally friendly with no harmful emissions.&nbsp;</li><li> Long-lasting and durable.&nbsp;</li><li> Operate using solar panels, providing all required energy directly from the sun.&nbsp;</li><li> Reduce labor costs and require minimal maintenance, saving time.&nbsp;</li><li> Use renewable energy, making them cost-effective in the long term.
</li></ul> <h3>Disadvantages of solar-powered pumps:</h3><ul><li> Initial installation costs can be high due to the purchase of solar panels.&nbsp;</li><li> Without a storage (battery) system, the pump cannot operate at night or during low sunlight.&nbsp;</li><li> Performance depends on sunlight; early morning or late evening operation may be limited.&nbsp;</li><li> Adding a battery system can solve the sunlight dependency issue. </li><li>Prices vary depending on the pump’s design, brand, and model.
</li></ul>

One of the biggest advantages of solar-powered pumps is that they provide energy savings. Click here for the advantages and disadvantages of solar-powered pumps.

What are the advantages and disadvantages of solar-powered pumps?

What is an inverter, and what is its purpose? l Masdaf

An inverter is an electrical power conversion device. Another well-known name for an inverter is a power converter. The term “inverter” appears frequently. Its Turkish equivalent is “invertör.” Inverters take voltage from any DC source and use it to obtain AC voltage at a fixed or variable frequency. An inverter can also be considered a type of power electronics circuit. In addition, an inverter has a reverse function called a rectifier.

Inverters have a wide range of applications. They are commonly used in small power supplies for computers and in electrical distribution systems. Large-scale systems also frequently use inverters. There are many types of inverters, including microprocessor-controlled or low-voltage inverters, overload-protected inverters, and inverters with static regulation.
 <h2>Why are inverters used?</h2>

Inverters serve multiple purposes. They help the system operate more efficiently by preventing interruptions, fluctuations, and imbalances. They also increase system efficiency, minimize motor or mechanical failures, reduce maintenance costs, extend device lifespan, and provide energy savings. When selecting an inverter, it is important to consider that its capacity should exceed the total power of the devices you plan to use. Knowing the power consumption of your equipment before purchasing is essential.

In heating, ventilation, and air conditioning applications, one of the most commonly used technologies is frequency drive technology. Motor-mounted frequency inverter in-line centrifugal pumps offer many features.
 Features of Genio INM Series Motor-Mounted Frequency Inverter In-Line Centrifugal Pumps

INM Genio motor-mounted frequency inverter pumps are in-line (pipeline type), driven by standard electric motors, and equipped with mechanical seals. The direct installation of the frequency inverter on the motor provides compact unit design, easy integration into intelligent applications, compatibility with various sensors, and quiet, safe operation. The basic dimensions and nominal flow rates comply with DIN 24255 and EN 733 standards. Flanges comply with DIN 2535 PN 16 pressure class. Suction and discharge flanges are identical and on the same axis, with pressure taps on both flanges. The single-suction, closed-type impeller is equipped with rear rings that balance axial loads and is dynamically balanced. The motor is coupled to the pump using an adapter and flange. The pump shaft, impeller, and other parts can be removed without disassembling the suction and discharge pipes or the pump casing, making installation and maintenance easy.
 <h2>Applications of Genio INM Series Motor-Mounted Frequency Inverter In-Line Centrifugal Pumps</h2>

These pumps have numerous applications, including: <ul><li>&nbsp;Water networks and pressurization systems&nbsp;</li><li> Irrigation, sprinkler systems, and water discharge&nbsp;</li><li> Filling and emptying tanks and reservoirs&nbsp;</li><li>Heating and cooling systems, hot and cold water circulation&nbsp;</li><li> Condensate pumping&nbsp;</li><li> Swimming pool water circulation&nbsp;</li><li> Industrial and social facilities&nbsp;</li><li> Freshwater and seawater pumping on ships

</li></ul>

An inverter is an electrical power conversion device. Another well-known name for an inverter is a power converter.

What is an inverter, and what is its purpose?

What is a coupling, and why is coupling alignment important in pumps? l Masdaf

A coupling is one of the most fundamental machine components that transmits power. It plays a key role in ensuring safe power transmission in machines. The simple yet very important function of a coupling is to transfer rotational motion from a motor or similar device to the shaft on the other side. It acts like a fuse in the system, tolerating a certain amount of slip between shafts and absorbing or preventing loads applied to them. Couplings are manufactured for a specific torque. The reason for this is both to transmit power adequately to the other side and, in case of possible jamming, to break and prevent further damage to the system. Couplings can be made from various materials, including steel, stainless steel, aluminum, cast iron, composite materials, and plastic. Coupling prices vary depending on the type and application, so giving a fixed price is not feasible.
 <h2>Types of Couplings</h2> Couplings are selected according to the needs of the system. Some commonly used industrial coupling types include: full-flex gear couplings, rigid couplings, elastic couplings, spring couplings, and leaf spring couplings. Other types include bellows couplings, chain couplings, hydraulic couplings, magnetic couplings, disc couplings, spindle couplings, and torque-limiting couplings. They are used wherever power transmission is required, such as in lifting and conveying equipment or pump systems.
 <h2>Importance of Coupling Alignment in Pumps</h2> Couplings are precise components that require careful alignment for proper system operation. The shaft axes must be accurately aligned; the better the alignment, the more efficient the system. Methods for coupling alignment include using a ruler or square on the coupling surface, using a dial indicator (comparator), or employing laser coupling alignment tools for high precision. <h2>Coupling Selection</h2> Key points when selecting and installing a coupling: <ul><li>Choose a coupling with appropriate torque rating. </li><li>Ensure proper installation and alignment.&nbsp;</li><li> Consider environmental factors such as temperature, humidity, dust, and vibration.&nbsp;</li><li> Carefully calculate axial and horizontal angles.&nbsp;</li><li>Make sure the coupling can be easily removed for maintenance.
</li></ul> <h2>Coupling Maintenance</h2> Maintenance should include regular inspection of the coupling for cracks or damage. Rubber elements must be checked for wear or deformation. Clean any grease or dirt on the surface. Inspect for surface wear, excessive noise, or vibration, which can indicate problems. In hydraulic couplings, check for oil leaks. Bolts should also be checked for tightness and wear. Regular maintenance ensures longevity, efficiency, and safe operation.

A coupling is one of the most fundamental machine components that provides power transmission.

What is a coupling, and why is coupling alignment important in pumps?

What is a bearing? The importance of bearing selection in pumps l Masdaf

A coupling is one of the most fundamental machine components that enables power transmission. It holds a crucial role in ensuring the safe transfer of power in machinery. The answer to the question "What does a coupling do?" is simple yet very important. A coupling transmits the rotary motion it receives from the motor or similar equipment to the shaft on the other side. It acts as a sort of safety device in the system. It tolerates a certain degree of slip in the shafts and absorbs and prevents loads from reaching the shafts. Couplings are manufactured for a specific torque. Depending on the application, there are many types of couplings available. The reason for manufacturing them for a specific torque is both to transmit power sufficiently to the other side and to break in case of potential jamming, preventing further damage to the system. Couplings are made from various materials. Some of these materials include steel, stainless steel, aluminum, cast iron, composite, plastic, and similar. Coupling prices are another commonly asked topic. However, it is not appropriate to give a fixed price. Coupling costs vary depending on the application and model, so prices differ accordingly.
 <h2>Types of Couplings</h2>

Couplings are determined according to the needs of the system in which they will be used. There are a large number of coupling types. Some of the couplings frequently preferred in industrial applications are: full-flex gear coupling, rigid coupling, elastic coupling, spring coupling, and leaf spring coupling. Additionally, bellows coupling, chain coupling, hydraulic coupling, magnetic coupling, disc coupling, spindle, and torque-limiting couplings are also used in many areas. Regarding where couplings are used, they are employed wherever power transmission is required. They are found in lifting and conveying equipment as well as in pump systems.
 <h2>Importance of Coupling Alignment in Pumps</h2>
Couplings are equipment that require very precise alignment due to their function. Proper coupling alignment is critical for the smooth operation of the system and process. The alignment of the two shafts is a very important detail. The more accurate and precise the alignment, the more efficient the system operates. Several methods are commonly used for coupling alignment. One method involves using tools like rulers or try squares directly on the coupling surface. Precision alignment can also be achieved with a comparator. Laser coupling alignment devices contribute to this precise adjustment.
 <h2>Coupling Selection</h2> There are several key points to consider when selecting and installing a coupling. A few of these are as follows:
 <ul><li>&nbsp;The coupling should first be selected for an appropriate torque.&nbsp;</li><li> Installation must be done with proper and accurate alignment.&nbsp;</li><li> Environmental factors such as temperature, humidity, dust, or vibration must be carefully evaluated, and the installation site should be prepared according to suitable conditions. </li><li>Axial and horizontal angles must be carefully calculated.&nbsp;</li><li> Coupling removal is as important as installation. The coupling should be easy to remove when adjusting its position.</li></ul> <h2>Coupling Maintenance</h2>There are several important considerations for coupling maintenance. Periodic inspection is essential. Components of the coupling should be checked for cracks or breakages. The coupling elastomer should also be examined as it may be damaged or deformed. Oils and dirt on the coupling should be cleaned regularly. The surface of the coupling should be checked for wear. Noise is an important factor; excessive noise may indicate a problem somewhere. Vibration is another aspect to monitor. Hydraulic couplings may experience oil leakage, so these should be frequently checked. The condition of bolts and whether they have loosened is also an important aspect of coupling maintenance.

What is a bearing? The importance of bearing selection in pumps

What is a pool pump? What is the purpose of a pool pump? l Masdaf

During these days when efforts are being made to control the coronavirus pandemic, hygiene is our most important agenda. Especially with the arrival of summer, one of the extra important issues for those who dare to go on vacation is ensuring that vacation conditions are completely hygienic. When it comes to germs, one of the first places that comes to mind is undoubtedly swimming pools. The bacteria and germs in pools are factors that threaten our lives not only during the coronavirus pandemic but at all times. The cleanliness of pools, especially in hotels or facilities we visit, is one of the first things we pay attention to. So, how is the cleanliness of pools ensured? Of course, there are certain chemicals used according to the pool’s maintenance and repair instructions. However, one of the most important roles in pool cleaning belongs to the pool pump, which we will explain shortly.
 <h2>What is a Pool Pump?</h2> If a pool does not have a pump, the pool will become dirty again shortly after being filled with water. Bacteria and germs will accumulate in the water, and the pool will become quite dirty in a short time. One of the main reasons for this is the absence of a pool pump. A pool pump is needed to clean dirt, insects, mosquitoes, and bacteria that accumulate in the pool and to help chemicals spread more effectively to fight germs. In short, a pool pump is the name given to the pumps that provide circulation within the pool. It draws water in and cleans it from unwanted substances such as insects, mosquitoes, and leaves through filters located at the intake, keeping the water clean. Thanks to the pool pump, water is constantly circulated, and the pool chemicals used against bacteria are evenly distributed. It also ensures the even distribution of chlorine, one of the essential substances in a pool. We can say that the pool pump is the heart of the pool mechanism.
 <h2>Working Principle of a Pool Pump</h2> Let’s briefly explain the working principle of a pool pump. The pump system has an electric motor. This electric motor rotates like a propeller inside the pump body. This propeller moves water through various channels and the filter, providing circulation and returning the water to the pool inlets. The pool pump sends water to the filter, where foreign substances are collected. Thus, the pool pump circulates water, performing the cleaning, filtering, and purifying functions mentioned above. It allows all dirt and bacteria to be removed from the water.
 <h2>What to Consider When Using a Pool Pump</h2> Pool pump prices vary depending on the type of pump you purchase. There are several points to consider during its use. First, ensure that the suction and discharge powers of the pool pump are compatible with the filter capacity. The area where the pump is positioned should be completely free from moisture. Additionally, the motor section must be protected to be water-resistant, because in a pool environment, it is always uncertain where water may come from. The height of the pump must be planned according to pool conditions. Another important point is related to the pump motor. If the pump motor takes in water or the propeller is not positioned properly, the pool pump may burn out. Therefore, the positioning of the pool pump and motor is crucial. Especially in summer, giving the pump a maximum of 2 hours of rest for every 12 hours of operation can be beneficial for the pump’s lifespan. This also reduces the amount of chemicals needed and keeps the pool water always clear. A few additional important points regarding pool pump use are listed below:
 <ul><li>Pumps should not be operated without water. They must always run with water. </li><li>The multiport valve positions must be changed while the pump is turned off.&nbsp;</li><li> The outlet valve should be closed when starting the pump.&nbsp;</li><li> If you see air bubbles in the transparent cover of the pre-filter while the pump is running, it indicates a problem, as no air bubbles or air gaps should be present.
</li></ul>

A pool pump is the name given to the pumps that provide circulation within the pool. Click for the working principle of a pool pump and pool pump prices.

What is a pool pump? What is the purpose of a pool pump?

What should be considered when selecting a hydrofor? l Masdaf

A hydrofor, also defined as water pressurization, is the name given to water pressurization systems used in places where water pressure is insufficient. It is used to meet the need for pressurized water when water pressure is not adequate. It operates electrically and functions to increase the pressure of water flowing from taps. It has an expansion tank, which is used to supply water in areas where the network water is insufficient. A hydrofor can be connected directly to the mains water supply or to a network line.&nbsp;
Hydrofor failures are common technical issues. Sometimes they occur due to motor overload, and sometimes because the system frequently cycles on and off. Hydrofor failures are not only caused by technical issues but also by incorrect selection. Hydrofor types vary depending on their area of use. Choosing the correct hydrofor is one of the first steps to achieving full efficiency. In this article, we outline what to consider when selecting a hydrofor.
 <h2>Hydrofor Selection</h2>

Before purchasing a hydrofor, it is recommended to start with a few questions. First, you need to know how much water you need. How much water is used in your home or workplace? Begin by noting all water fixtures and calculating how many liters of water are consumed per minute. The required pressure and water flow rate are also important factors to consider. The type of hydrofor you need depends on your water usage, the desired pressure, and the location of your water source. For example, if you have a large house, you may need a hydrofor that can provide pressure to the second and third floors. As the number of floors increases, the discharge capacity of the hydrofor must change proportionally.

 <h2>How to Make the Right Hydrofor Choice</h2> If you will use a hydrofor in a business, consider the following points to determine the most suitable type:
 <ul><li>The location of use is important. How many people will use it, or in what volume (m³) will it operate?&nbsp;</li><li> What are the flow requirements? You may need to meet total flow requirements with multiple pumps.&nbsp;</li><li> If one pump is out of service, can the remaining pumps meet the total flow requirement?&nbsp;</li><li> Is the NPSH characteristic suitable for installation? The pump type must comply with NPSH requirements according to installation rules.
</li></ul>
If a hydrofor will be used for a garden system or residential plumbing, the following questions are important for selecting the right hydrofor:
 <ul><li>How many floors does your house have, and how many taps?&nbsp;</li><li> If used for garden irrigation, what is the area of the garden, and how will irrigation be performed?&nbsp;</li><li> How far is your water source?&nbsp;</li><li> Where will the water be obtained from?</li></ul> Pumps are classified based on specific values. Hydrofor systems are selected similarly, according to certain calculations. The selection of a hydrofor should be based on details such as the amount of water consumed per hour, discharge height, NPSH characteristics, pressure, flow rate, and similar factors.

The selection of a hydrofor should be made according to details such as the amount of water consumed per hour, discharge height, NPSH characteristics, pressure, flow rate, and similar factors.

What should be considered when selecting a hydrofor?

What is a centrifugal hot oil pump? What are the areas of use for a centrifugal hot oil pump? l Masdaf

Pumps used to transfer, circulate, or filter liquids from one place to another vary according to their areas of use. Pump types differ not only based on their models but also according to the type of liquid or fluid to be transferred. For example, a magnetic coupling pump is designed to pump toxic or other hazardous liquids without using a mechanical seal, whereas submersible pumps are capable of operating while submerged in water. Pumps vary depending on their usage area and the type of liquid being transported. Their basic working principles also change according to the pump type. Definition of Centrifugal Hot Oil Pump
These types of pumps, also referred to as hot oil pumps, thermal oil pumps, or molten oil pumps, are pump types resistant to high temperatures. They are generally used to pump heat transfer oils and low-viscosity industrial oils that do not contain abrasive particles. Centrifugal hot oil pumps are used in hot oil circulation systems, industrial facilities, and for transferring low-viscosity industrial oils without abrasive particles. The areas of use for centrifugal hot oil pumps can be summarized as follows: <ul><li>&nbsp;Transferring low-viscosity oils&nbsp;</li><li> Hot fluid pumps in heat transfer processes&nbsp;</li><li> Drying processes in the chemical, plastic, paper, textile, and leather industries&nbsp;</li><li> Pumping processes of molten oils </li></ul> <h2>KYP Series Centrifugal Oil Pumps General Features
</h2>
KYP series centrifugal oil pumps are single-stage and end-suction centrifugal pump types. The main pump dimensions comply with DIN 24256 standards and are ISO 2858 certified. A single-entry, closed-type impeller is used. Radial blades are located behind the impellers to reduce the pressure on the mechanical seal and balance axial force. The pump and motor are mounted on a common base via a flexible coupling. Maintenance of the pump is very easy and does not require additional repair or servicing. The shaft and other rotating parts can be removed easily without touching the suction and discharge piping. Since the number of common parts is maximized, spare parts are readily available and easy to stock. Its design eliminates the need for external cooling, as the pump temperature naturally dissipates from the body to the bearing housing.
 <h2>KYP Series Centrifugal Oil Pumps Technical Specifications</h2>
Some notable technical features of KYP series centrifugal oil pumps include:
 <ul><li>Suction flange: DN 50 to DN 125&nbsp;</li><li> Discharge flange: DN 32 to DN 100&nbsp;</li><li> Operating pressure: 16 Bar&nbsp;</li><li> Speed: 500 – 3000 rpm&nbsp;</li><li> Flow rate: 10 – 400 m³/h&nbsp;</li><li> Discharge head: 5 – 90 m
</li></ul>
Centrifugal hot oil pumps are used in chemical and refinery facilities, paper and sugar industries, food and pharmaceutical industries, leather industry, plastics and synthetic fiber industry, rubber industry, cooking and heating industry, textile industry, and for transferring heat transfer fluids above 100°C.

These types of pumps, also referred to as hot oil pumps, thermal oil pumps, or molten oil pumps, are pump types resistant to high temperatures.

What is a centrifugal hot oil pump? What are the areas of use for a centrifugal hot oil pump?

What is a screw pump? How does a screw pump work? l Masdaf

A screw pump is one of the popular types of pump equipment. It is widely used in industry and everyday life. Screw pumps are used to transfer liquids with high or low viscosity along an axis. They are positive displacement pumps that can have one or more screws. Screw pumps are developed based on Archimedes' screw principle. Today, screw pumps are commonly seen in agricultural and irrigation applications. Designed as positive displacement pumps, screw pumps create a partial vacuum through the movement of the screws and distribute high axial force during pumping.
 <h2>Working Principle of Screw Pumps</h2>
The working principle of screw pumps is based on the rotation of the rotor positioned inside the stator. The rotor has a chain of sealed chambers. During the rotor’s rotation inside the stator, these chains move spirally along the pump axis. As a result, the liquid’s structure or content does not change. In short, the operation of screw pumps can be summarized as follows: at the bottom of the pump body, a feed opening allows the liquid to enter the internal working chambers, where it is captured by the rotor blades and pushed to the upper part of the chamber. This completes the pumping function. The capacity of screw pumps can be calculated based on the pump’s dimensions, the size of the screw surface, and the rotor’s rotation speed.
 <h2>Advantages of Screw Pumps</h2><ul><li> Durable components with high resistance&nbsp;</li><li> High tolerance to steam and particle formation&nbsp;</li><li> High tolerance to dust formation&nbsp;</li><li> High pumping speed&nbsp;</li><li> Efficient pump type</li></ul> <h2>2HM / 2VM Series Screw Pumps Features</h2> 2HM / 2VM series twin screw pumps can transfer various fluids that are not solid or highly viscous. Twin screw pumps have a wide range of applications, reliably transferring fluids containing gas or different liquids without risk of corrosion or lubrication issues. Thanks to the specially designed pump inlets and outlets, sufficient fluid remains in the body even when the pump is not operating, ensuring good self-priming performance and quick drainage from the inlet line. A specially designed bypass valve directs fluid from the discharge to the suction side under high-pressure conditions to reduce the operating torque. Power is transferred from the main drive gear to other gears via independently lubricated synchronous gears, providing loss-free and steady flow. This allows reliable fluid transfer and protects the pump even during short-term dry operation. The specially designed hydraulic structure ensures pulse-free fluid transfer from the suction to the discharge side as the shaft is driven. Twin screw pump bodies can be chosen from different designs to allow the transfer of various fluids at different temperatures.
 <h2>2HM / 2VM Series Screw Pumps Technical Specifications</h2>Flow range: 0 – 2500 m³/h&nbsp; Manometric head: 0 – 600 m&nbsp; Motor speed: 1000 – 3600 rpm Operating pressure: 0 – 60 bar Operating temperature: -30 – 300 °C&nbsp; Viscosity range: 0.5 – 100 mm²/s
 <h2>Applications of 2HM / 2VM Series Screw Pumps</h2> <ul><li>Oil Industry: Transfer of various lubricating oils, crude oil, waste oil, heavy oil, tar, diesel, etc.&nbsp;</li></ul> <ul><li>Shipbuilding: Transfer of light or heavy fuel oil, waste oil, sludge, oily sludge under cabins, also as pressure boosting and ballast pumps.</li></ul> <ul><li>Chemical Industry: Transfer of acids, alkalis, salt solutions, resins, glycerin, paraffin wax, and cosmetic emulsions, also as bottle filling pumps.
</li></ul> <ul><li>Paint Industry: Delivery of printing inks and various paints and coatings.
</li></ul> <ul><li>Transfer Industry: Loading and unloading of oil products for oil tanks and tanks.
</li></ul>

A screw pump is used to transfer liquids with high or low viscosity along an axis.

What is a screw pump? How does a screw pump work?

What is NPSH (Net Positive Suction Head)? l Masdaf

When it comes to pumps and their derivatives, some frequently encountered terms in search engines include: suction mode, NPSH, NPSH pump, NPSH calculation, NPSH value, and NPSH curve. Here is a brief summary of NPSH.
 <h2>What is NPSH?</h2> NPSH stands for Net Positive Suction Head. It refers to the inlet pressure that allows a pump to perform transfer according to its curve. Also called the NPSH curve, it represents the minimum inlet pressure required to prevent cavitation by stopping the liquid from vaporizing inside the pump. The NPSH curve is expressed in meters ("m"). For a specific flow rate, the available NPSH at the pump suction should ideally be at least 0.5 m higher than the required NPSH.
 <h2>What is Cavitation?</h2>Cavitation occurs when bubbles form in the liquid inside the pump. It is one of the most common problems in pumps. Cavitation is more of an indicator than a problem itself. It can happen for two reasons: the nature of the pumped liquid or air being sucked into the pump during suction. The NPSH value and curve play a critical role in preventing cavitation. In short, NPSH represents the minimum pressure required at the pump inlet for centrifugal pumps to operate without cavitation. It is the pressure necessary to keep the fluid in a liquid state and prevent vaporization.
 <h2>NPSH Calculation</h2> NPSH indicates the minimum required pressure at the pump suction side. Centrifugal pumps cannot create suction by themselves, so a minimum inlet pressure is required for proper operation. This value varies from pump to pump. If the NPSH value is too low, cavitation increases, which can damage the pump, reduce efficiency, and eventually render it nearly unusable.

 The NPSH formula is:
NPSH = Ha + Hs – Hvpa – Hf Where: <ul><li>NPSH = Net Positive Suction Head; the minimum pressure required at the pump suction.
</li><li>Ha = Absolute Pressure of the liquid (atmospheric pressure); the pressure applied externally on the liquid surface. </li><li>Hs = Static Suction Pressure (or static suction head); the height above or below the pump suction inlet.
</li><li>Hvpa = Vapor Pressure of the liquid; varies with temperature and type of liquid, increases with higher temperatures.
</li><li>Hf = Friction losses in the suction line; depends on flow rate and should be minimized to ensure proper NPSH.
</li></ul>

Net Positive Suction Head (NPSH) is the inlet pressure that allows a pump to perform transfer according to its curve.

What is NPSH (Net Positive Suction Head)?

Ways to achieve high efficiency in pump systems l Masdaf

In every system and component, efficiency and energy are key factors — and pump systems are no exception. Operating a pump at high efficiency not only saves money but also provides significant benefits in terms of time and performance. Especially during busy periods when we try to fit everything into a tight schedule, the most valuable tools are those that save us time. The more efficiently a pump operates, the more control it provides over both time and cost.
 There are several essential steps to achieve high efficiency in pumping systems. Achieving high pump efficiency starts with the right pump selection and proper installation. Below are several key points to help you get maximum efficiency from your pump system.
 <h2>
Maintenance</h2>
When it comes to “high efficiency,” maintenance is always a focal point — not just in pump systems but also in all types of equipment, machinery, and work tools. A pump that is poorly maintained or not maintained at all cannot be expected to operate efficiently. Over time, the pump system wears down, deteriorates, and may fail to function properly. This shortens its lifespan and brings additional costs. Pumps that are intended to provide long-term benefits may let you down without regular maintenance. Therefore, prioritizing maintenance and repairs is crucial.
 There are several key aspects to focus on in pump maintenance. For example, in solid waste pumps, it’s recommended to check for worn impellers and replace them if necessary. Checking coupling alignment, maintaining and lubricating bearings are also critical steps. Additionally, inspecting the pump and motor (current, sound, vibration) and performing regular system checks at appropriate intervals helps prevent potential malfunctions. Timely and proper maintenance is one of the best ways to avoid costly breakdowns.
 <h2>
Monitoring systems</h2>
Pump systems can be monitored using control devices such as vibration analyzers, flow meters, thermal cameras, and electrical measurement tools. Monitoring allows you to detect impeller damage, identify blockages, or recognize issues such as inadequate suction power, misalignment in couplings, and looseness in chassis connections. Keeping track of these parameters helps detect potential issues early.
 <h2>
Control systems
</h2>The purpose of control systems, which we often highlight in pump maintenance, is to ensure the pumps are operated properly. With remote monitoring methods, system checks can be performed faster and more accurately, helping prevent possible malfunctions to some extent.
 <h2>
Correct pump selection
</h2>At this stage, it’s important to know the purpose of use and the type of transfer being performed. Choosing the wrong pump reduces efficiency. For instance, pumps require specific pressure and flow rates depending on the nature of the transferred fluid. If the wrong pump is selected, power and performance efficiency decrease. By selecting the right pump for the right task, you can both improve efficiency and reduce operating costs — mainly energy consumption. Correct pump selection also prevents unnecessary energy use and maintenance expenses.
 <h2>
Pump performance
</h2>Selecting the correct operating parameters — pressure, flow rate, power, and speed — is critical to ensure pump efficiency. Oversized or undersized pumps always result in performance losses.
 <h2>
Impeller operation</h2>
Choosing an impeller type suitable for the physical and chemical properties of the fluid is essential. The correct impeller or pump type saves energy and extends the pump’s lifespan.
 <h2>
Pipe selection</h2>
Did you know that selecting the proper pipe diameter can significantly reduce friction losses in pump systems? If the pipe cross-section is too small, it increases friction losses, causing wear, inefficiency, and unnecessary energy consumption. Proper pipe sizing and placement can therefore yield benefits in every aspect.
 <h2>
Sealing materials
</h2>Sealing materials act as the pump’s protective shield. The more suitable the mechanical seals used, the higher the efficiency achieved. Choosing the right seal type for the specific fluid is essential for optimal performance.

The purpose of the control systems, which we often emphasize in pump maintenance, is to ensure the proper operation of the pumps.

Ways to achieve high efficiency in pump systems

What is a flow meter? What is a flow meter used for? l Masdaf

A flow meter, also known as a flow gauge or flow sensor, is a device used to measure the flow rate of fluids such as gases, liquids, or steam passing through a pipeline, expressed in terms of quantity per unit of time. Let’s start our article by briefly explaining what a flow meter is. A flow meter measures these flows either mechanically or electronically. In another definition, a flow meter is a type of device used to measure the volume or mass of a gas or liquid. Depending on the industry, flow measuring devices can be referred to by different names such as flow gauge, flow indicator, liquid meter, or flow rate sensor. All these terms fall under the general category of flow meters.

For example, open channels can be measured using flow meters, and they can also be used to measure the flow of liquids and gases in pipes. To answer the question “What is a flow meter used for?”, we can say that it is used to maximize the precision, accuracy, and resolution of liquid flow measurement. One of the main benefits of a flow meter is that it ensures maximum resolution in liquid measurement.

Flow meters come in various designs. Some are installed directly inside the pipe for in-line measurement, while others perform measurements externally, depending on their design and functionality. Flow meters that measure the flow rate of solids, liquids, or gases are commonly used in devices such as engines, compressors, pumps, or heat exchangers. They are used both to verify manufacturing accuracy and to evaluate product performance. When we look at where flow meters are used, we see that they are most commonly utilized by mechanical engineers.

### <h2>What are the units of flow measurement?
</h2>
As mentioned earlier, a flow meter is a device used to measure the amount of fluid—gas, liquid, or steam—passing through a system, expressed in quantity per unit of time. Flow meters have specific measurement units, which can be expressed as follows: <ul><li>Liters per second (L/s)&nbsp;</li><li> Liters per minute (L/min)&nbsp;</li><li> Liters per hour (L/h)&nbsp;</li><li> Cubic meters per minute (m³/min) </li><li>Cubic meters per hour (m³/h)&nbsp;</li><li> Kilograms per hour (kg/h)&nbsp;</li><li> Kilograms per minute (kg/min)
</li></ul> <h2>What are the types of flow meters?</h2>

Flow meters, which allow for instantaneous and total flow measurement and data evaluation, are essential components of automation systems. There isn’t a single definitive answer to how a flow meter works, as there are different types designed for various applications and needs. The first step is to determine your specific requirement. By selecting the appropriate flow meter, you can ensure maximum efficiency. Therefore, it’s important to thoroughly review the different types before purchasing a flow meter and choose the one that best suits your needs. Flow meter prices vary depending on the device’s features.

Here are some common types of flow meters:
 <h3>Electromagnetic Flow Meter
</h3>
Electromagnetic flow meters are among the most technologically advanced types. They are used to measure the flow of conductive liquids and operate based on Faraday’s Law of Electromagnetic Induction.
 <h3>Ultrasonic Flow Meter
</h3>
An ultrasonic flow meter measures the velocity, flow rate, and direction of fluid within a pipe without causing any damage to the pipe or the fluid. It uses sound waves to determine the velocity and quantity of the flowing liquid. Ultrasonic waves are transmitted and received, allowing accurate measurement.
 <h2>Turbine Flow Meter</h2>

Turbine flow meters are widely used in water treatment and spring water production facilities. They are also used in swimming pools and liquid filling machines to measure high-pressure and high-temperature liquids. They are easy to install and require minimal maintenance.
 <h2>Positive Displacement Flow Meter
</h2>
Positive displacement flow meters are ideal for measuring the flow of viscous fluids that do not flow easily, such as glue, syrup, hydraulic oils, grease, paint, or additives. They are the most suitable type of flow meter for “thick” or high-viscosity liquids.
 <h3>Float Flow Meter
</h3>
Float flow meters are commonly used to measure the flow rate of water. In addition to water, there are also types designed for measuring air flow.

<h3>
Flow Control Valve Flow Meter</h3>
Flow meters with control valves operate mechanically and are used to regulate gas flow rates. They are among the preferred types of flow meters for gas measurement and control applications.

A flow meter is a device used to measure the amount of a substance with fluidity — such as gas, liquid, or steam — passing through a system, in terms of quantity per unit of time.

What is a flow meter? What is a flow meter used for?

What is a magnetic coupling pump? How does a magnetic coupling pump work? l Masdaf

Pumps, which are used to transfer, circulate, or filter liquids from one place to another, are equipment encountered in almost every application that involves the word “liquid.”

Pumps are not only classified according to their types and areas of use but also according to the type of liquid they carry. For example, if the liquid to be pumped contains hazardous chemicals or if the pump needs to operate fully submerged in the liquid, different pump types are required because the process differs. This is where the use of magnetic coupling pumps becomes necessary. Let’s briefly define what a magnetic coupling pump is. A magnetic coupling pump is a type of pump that operates based on the principles of magnetism. These pumps are designed to transfer toxic or other hazardous liquids without using a mechanical seal. Electrical components are completely enclosed, and the magnetic force is transmitted via a magnet positioned on the shaft that rotates the impeller. While magnetic coupling pumps are primarily used for hazardous substances, they also offer several advantages. One of the main benefits is that they do not require sealing equipment, eliminating common issues such as seal wear, which could otherwise endanger the pump.

However, magnetic coupling pumps are not entirely risk-free; regular maintenance is necessary and may be more frequent compared to other pump types. If the transported liquid is flammable, toxic, radioactive, or otherwise poses a threat to human health and the environment, even a minor leak can be extremely dangerous. Magnetic coupling pumps are considered a cost-effective type of pump. In addition, their installation is generally easier and faster than other pump types.

### <h2>Working Principle of Magnetic Coupling Pumps
</h2>
Magnetic coupling pumps consist of an impeller and magnets, which are connected to the motor. The magnets are attached to the pump’s drive assembly. When the motor operates, it rotates the magnet, which in turn drives the impeller through magnetic force. Magnetic coupling pumps are generally centrifugal pumps. The working principle relies on a balanced magnetic field to ensure proper impeller rotation. The outer magnet connected to the motor drives the inner magnet located on the impeller. As a result, the impeller rotates, moving the liquid within the pump. The inner and outer magnets are separated by a sealing arrangement, allowing the pump to operate safely without direct contact between the motor and the fluid.
 <h2>Applications of Magnetic Coupling Pumps</h2>

As mentioned earlier, magnetic coupling pumps are used for transferring liquids containing hazardous substances. Their applications depend on the type of liquid being transferred. Some of the chemicals typically handled by magnetic coupling pumps include hydrochloric acid, methane, sodium sulfate, sodium hydroxide, sodium hypochlorite, and sulfuric acid. Specific applications include:
 <ul><li>Liquids containing chemicals such as paints and oils, corrosive acids like hydrochloric or sulfuric acid
</li><li>Loading and unloading operations of tankers carrying dangerous or flammable liquids&nbsp;</li><li> Applications where the liquid could corrode seals or cause crystallization on sealing surfaces</li></ul> <h2>NM M-Drive Series Magnetic Coupling Seal-less Centrifugal Pump Features
</h2>
One type of magnetic coupling pump, the centrifugal pump, is used to transfer corrosive, explosive, flammable, toxic, valuable, volatile, and high-temperature fluids. These pumps are commonly used in the petrochemical sector, for transferring hazardous liquids such as detergents in the food industry, in harmful gas treatment systems, biodiesel plants, HVAC systems, power generation plants, solar energy systems, the medical sector, electrostatic painting, and carbon arc furnace cooling systems.

These are single-stage, end-suction, seal-less pumps with dynamically balanced closed impellers. The pump-to-motor connection is made on a common base using a magnetic coupling. Major dimensions comply with TS EN 733 standards. Since the pump can be separated from the piping while leaving the volute casing connected, maintenance and repair are easy and efficient, saving time and effort.&nbsp;

Magnetic coupling pumps are a type of pump designed to transfer liquids containing toxic or other hazardous substances without using a mechanical seal.

What is a magnetic coupling pump? How does a magnetic coupling pump work?

What is a Hydraulic Pump? Types of Hydraulic Pumps l Masdaf

Let’s start by briefly defining what a hydraulic pump is. A hydraulic pump is a system component that converts mechanical energy into hydraulic energy. It uses the rotational motion from an electric motor or an internal combustion engine to draw fluid from a reservoir according to the principle of increasing or decreasing volume and then delivers it to the system. Many people assume that hydraulic pumps generate pressure; it is commonly believed that they operate under the pressure they create. However, hydraulic pumps do not generate pressure themselves. Pressure arises due to the resistance against the fluid flow. In short, pumps do not create pressure—any pressure observed depends on the resistance in the system.

Hydraulic pumps serve as a power source for many dynamic machines. They are capable of delivering large volumes of oil to hydraulic cylinders or hydraulic motors, converting the driver’s mechanical energy into hydrostatic energy. Hydraulic machines equipped with pumps can perform various tasks such as lifting, lowering, opening, closing, or rotating components. Depending on the application and system requirements, different types of hydraulic pumps are used. Before discussing the types, let’s briefly explain how a hydraulic pump works.
 <h2>Working Principle of Hydraulic Pumps</h2>

Hydraulic pumps operate on the principle of displacement and have two primary functions. First, they create suction. By generating a pressure difference, the pump creates a vacuum effect on the hydraulic oil in the tank. This causes the hydraulic oil to be drawn into the pump and trapped between its components, increasing pressure. Hydraulic pump manufacturers design pumps based on functional and system requirements such as operating environment, required pressure range, and drive type. There are various design principles and configurations for hydraulic pumps, and no single pump meets all needs. That’s why three main types exist: gear pumps, vane pumps, and piston pumps. Let’s examine these types in detail.
 <h2>Types of Hydraulic Pumps
</h2><h3>Gear Pumps</h3>Gear pumps are classified as external or internal gear pumps. Their structure is simple, consisting of two meshing gears. Oil is drawn from the suction line, trapped between the gears, and pushed into the pressure line. They can reach pressures up to 200 bar. Gear pumps are widely available and economical, but they may show lower efficiency at high pressures and have shorter service life. They also tend to generate high noise levels.
 <h3>Vane Pumps</h3>Vane pumps are variable displacement pumps and can reach pressures up to 100 bar. Another type is the rotary vane pump, commonly referred to as a vane pump in the market. They are preferred in hydraulic circuits of machine tools and enclosed spaces. Unlike gear pumps, vane pumps operate with lower noise levels, which makes them highly favored. However, their suction performance is lower compared to other pump types.
 <h3>Piston Pumps</h3>Piston pumps are the most efficient type of hydraulic pump and are capable of generating the highest pressures. They come in various designs such as axial, radial, fixed displacement, variable displacement, and constant flow types.
 <h3>Common Hydraulic Pump Failures
</h3>
Regardless of type, every pump requires specific maintenance. Regular maintenance not only improves operational efficiency but also extends the pump’s service life. Common issues in hydraulic pumps include:
 <ul><li>Contamination of the hydraulic fluid&nbsp;</li><li> Cavitation problems&nbsp;</li><li> Faults due to incorrect oil selection&nbsp;</li><li> Installation errors&nbsp;</li><li> Problems during system commissioning</li></ul>

A hydraulic pump is a system component that converts mechanical energy into hydraulic energy. Click here for types of hydraulic pumps and common faults.

What is a hydraulic pump?

What is an Axial Pump? Axial Pump Selection l Masdaf

Let’s briefly define what an axial pump is. Axial pumps are a type of pump characterized by low discharge pressure and high flow rate. They are widely used in many applications, particularly where high flow at low pressure is required. An axial flow pump is a pump in which the fluid flows parallel to the shaft axis. For example, consider the propeller of a ship or a boat—this is an axial pump. It operates on the same principle as a ceiling fan. An axial pump is also a type of centrifugal pump that uses the momentum and velocity of the fluid to generate the pressure needed for higher flow rates. As with all centrifugal pumps, energy transfer in axial flow pumps occurs entirely through the fluid flow. <h2>Working Principle and Characteristics of Axial Flow Pumps</h2>

An axial pump is a type of dynamic pump. It pushes the working fluid in a direction parallel to the shaft or impeller axis. This is different from centrifugal pumps, where the fluid exits perpendicular to the impeller axis. Some axial pump designs include blades at the pump outlet that form a diffuser. These blades remove the rotational effect of the fluid and convert its kinetic energy into working pressure. Axial pumps are used in systems requiring high fluid discharge at low head, such as flood control and drainage systems.
 <h2>Characteristic Curves: Centrifugal vs. Axial Pumps
</h2>
There are several differences between centrifugal and axial pumps, which can be illustrated through characteristic curves. Some key points include:
 <ul><li>Both pump types can achieve similar maximum efficiency levels.&nbsp;</li><li> In a centrifugal pump, as fluid flow decreases, the input power also decreases. In contrast, in an axial pump, the input power reaches its maximum when the flow stops. This means that variations in fluid flow do not affect the axial pump’s operation—it continues functioning efficiently at all times. </li><li>Centrifugal pumps generally produce higher heads compared to axial pumps.
</li></ul> <h2>Factors to Consider When Selecting an Axial Pump</h2>Pump selection depends on the application and intended use. For long service life and optimal performance, the following performance characteristics should be considered:
 Flow Rate: Defines how fast the pump moves fluid through the system, typically expressed in gallons per minute (gpm). The pump’s rated capacity should match the required system flow rate.Pressure: As with all centrifugal pumps, the pressure generated by an axial flow pump depends on the specific weight of the fluid being pumped.Net Positive Suction Head (NPSH): The difference between the pump’s inlet static pressure head and the vapor pressure head of the fluid. The required NPSH is critical to preventing cavitation.
 <h2>Applications of Axial Pumps</h2>

Axial pumps are widely used across many industries. Some common applications include: <ul><li>Agricultural machinery
</li><li>Irrigation systems
</li><li>Sewage treatment plants
</li><li>Cooling water pumps
</li><li>Drainage systems
</li></ul>

Axial pumps are a type of pump characterized by low discharge pressure and high flow rate. Click here for the working principle of axial pumps and axial piston pumps.

What is an axial pump?

What is a self-priming wastewater pump? l Masdaf

A self-priming water pump is a type of pump also known as a self-priming wastewater pump, self-priming pump, or jet pump. Although self-priming pumps are not as commonly used as centrifugal or submersible pumps, they are among the most important pump types in terms of applications. Self-priming wastewater pumps are used to discharge water from both deep and shallow wells. As mentioned earlier, they are also called jet pumps or spray pumps. These pumps operate reliably, even in conditions where the water is muddy or aerated.
 <h2>Working Principle of Self-Priming Pumps</h2>

Self-priming pumps are typically installed at ground level above the liquid source, requiring some infrastructure for setup. Being at ground level also makes maintenance and repairs easier. The correct pump type must be selected depending on the application, such as fuel pumps for fuel transfer or solids-handling pumps for wastewater applications.

A self-priming pump is filled with liquid, usually the same fluid it will pump. As the impeller rotates within the pump casing, a low-pressure area forms at the impeller eye. Since this pressure is lower than atmospheric, it pushes all the air from the suction line into the pump. The pump mixes the air with the recirculating liquid in the casing; the air separates from the fluid and is expelled. Once all air in the suction line is displaced, the pump operates dynamically like a regular centrifugal pump.

One major advantage of self-priming pumps is that they can prime without submersing the pump in water, allowing it to remain outside the fluid source. The UKMS series pumps can self-prime from up to 6 meters.
 <h2>UKMS Series Self-Priming Wastewater Pumps
</h2>
The UKMS series are self-priming, centrifugal pumps with valves. Only the suction pipe needs to be in the well. They can be driven by diesel or electric motors using an elastic coupling. The series includes six different sizes: 2”, 3”, 4”, 6”, 8”, and 10”. The impellers are open and two-bladed. Depending on the pump size, they can handle solid particles up to 76 mm (3”), and clearing clogs is easy. The front suction cover allows easy access to the impeller, stuffing box, and mechanical seal without modifying the suction or discharge piping.

Key features include:
<ul><li>The valve in the suction flange is specially designed.
</li><li>The valve can be removed and replaced without altering the suction piping.&nbsp;</li><li> The bearing housing is supported by the pump casing, preventing alignment issues.&nbsp;</li><li> Being self-priming, these pumps are easy to use.&nbsp;</li><li> Once the suction pipe is submerged, the pump starts within about one minute depending on the suction height.
</li></ul> <h2>Advantages and Disadvantages
</h2>
Advantages:
<ul><li>Can handle solids up to 3 inches in diameter, allowing transportation of solid-containing liquids.</li><li>Can continue pumping while remaining outside the fluid source, unlike submersible pumps.</li></ul>
 Disadvantages:
<ul><li>Susceptible to air leaks since the suction line is always below atmospheric pressure.&nbsp;</li><li> After the first priming, the pump may need to be refilled before restarting.
</li></ul> <h2>Tips for Using Self-Priming Wastewater Pumps
</h2><ul><li>Before use, check for leaks at connectors, suction lines, or pump seals. Any leaks can reduce pump efficiency.&nbsp;</li><li> The length and diameter of the suction hose or pipe are important; longer hoses can reduce suction efficiency.&nbsp;</li><li> Keep the pump close to the water source to minimize friction losses.&nbsp;</li><li> Prime the pump before first use.&nbsp;</li><li> In cold environments, prevent freezing as expanding ice can damage the pump casing.

</li></ul>

Self-priming wastewater pumps are used to discharge water from both deep and shallow wells.

What is a self-priming wastewater pump?

What is a gear pump, and what are the features of a gear pump? l Masdaf

&nbsp;A gear pump is a type of rotary pump that transports fluid using rotating gears. It works by pushing fluid through the pump, creating a vacuum pressure and completing its function with two or more intermeshing gears. Gear pumps can generate very high pressures and are among the most common pumps used in hydraulic fluid power applications. The invention of the gear pump dates back to the 1600s, attributed to Johanner Kepler. They are widely used in chemical plants to pump high-viscosity fluids. Gear pumps deliver a fixed volume of fluid per revolution, providing smooth, pulsation-free flow proportional to the rotation speed of the gears. They are suitable for pumping highly viscous fluids such as plastics, oils, paints, adhesives, and soaps.
 <h2>
Working Principle of Gear Pumps</h2>

Gear pumps operate on the principle of positive displacement, meaning they pump a fixed amount of fluid per revolution. The idle and drive gears rotate to create suction at the pump inlet, drawing fluid in. Fluid is trapped between the gear teeth and the pump casing, directed to the discharge point. As the volume between the gears decreases, pressure builds up, pushing the fluid out. The flow rate depends on the gear speed (rpm) and the internal clearances; as the pump wears, internal slip increases.
 <h2>
Features of Gear Pumps
</h2>
Gear pumps are compact and simple, with a limited number of moving parts.

They provide higher pressure and efficiency than vane pumps, although they may not match the high flow rates of centrifugal pumps or the high pressures of piston pumps.

Designed for pumping oils and other high-viscosity fluids.

Often used for metering and mixing operations.

Can handle aggressive fluids if designed accordingly.

Typically made from cast iron or stainless steel.
 <h2>
Applications of Gear Pumps</h2>

Gear pumps are commonly used for pumping high-viscosity fluids such as: <ul><li>

Oils
</li><li>
Paints
</li><li>
Resins</li><li>

Food products
</li></ul>
They are ideal for applications requiring precise dosing or high-pressure output. Since the output of a gear pump is largely unaffected by backpressure, they can be used even in irregular feed conditions.
 <h2>
Types of Gear Pumps</h2>

Gear pumps are generally classified as external gear pumps or internal gear pumps.
 <h3>
External Gear Pumps:
</h3><ul><li>
Commonly used in hydraulic power applications, lifting machinery, or mobile equipment.</li><li>

Useful where electrically driven systems are bulky, costly, or impractical.
</li><li>
Moderate efficiency and relatively low cost.
</li><li>
Can transfer fuels such as gasoline, diesel, and kerosene, and handle high-pressure applications in some hydraulic devices.
</li></ul> <h3>
Internal Gear Pumps:
</h3><ul><li>
Also called internal or idler gear pumps.
</li><li>
Use an internal gear inside an outer gear to generate flow.
</li><li>
As the gears rotate, fluid is drawn into expanding cavities and pushed toward the discharge.
</li><li>
Capable of handling a variety of chemicals, resins, and viscous fluids.</li></ul>

A gear pump is a type of rotary pump; it transports fluid using rotating gears.

What is a gear pump, and what are the features of a gear pump?

How is the Closed Expansion Tank Calculated? l Masdaf

Expansion tanks are among the most critical auxiliary equipment in heating systems. Essentially, materials referred to as expansion tanks manage pressure control and provide water support. Categorized as a type of “installation equipment,” these products ensure high efficiency in heating systems. Depending on their capacity, operating principles, or models, there are different types of expansion tanks. They operate under very high temperature ranges, making them essential for areas such as heating or sanitary water installations.

Expansion tanks precisely control the expansion of water that occurs when the water in the system heats up. Water begins to expand significantly due to temperature, causing pressure to rise in heating systems. As pressure increases, it can damage the system, making pressure control critical. Otherwise, it becomes impossible to achieve efficiency in heating systems. Expansion tanks can function across a wide range of capacities, such as 50 liters or 500 liters.
 <h2>Features of Closed Expansion Tanks</h2>
Closed expansion tanks, which hold a special place among expansion tanks, are extremely attractive in terms of lifespan and durability. Due to certain placement issues experienced with open expansion tanks, the popularity of closed expansion tanks has significantly increased in recent years. These products are fully compatible with membranes. In closed expansion tanks, water is contained directly inside the membrane and does not come into contact with the tank. For this reason, closed expansion tanks are used in heating, cooling, and sanitary water processes. When selecting closed expansion tanks, it is ideal to act according to capacity. For example, vertical-legged models may be preferable for a 200-liter tank, while smaller tanks are better suited for spherical, legless models.

The dimensions of closed expansion tanks may vary depending on their models. Similarly, their prices may differ based on size and performance potential. Choosing according to the usage area and needs is crucial for cost management. Closed expansion tanks prevent issues caused by excessive pressure in heating systems, improve system efficiency, and prevent potential breakdowns. Thanks to these benefits, closed expansion tanks attract considerable interest. Today, they are actively used in many areas, from washing systems to water and pressure systems.

The most well-known technical feature of closed expansion tanks is that the system water does not come into contact with the steel tank. Additionally, the membranes in these tanks are bellows-type. Tanks are coated with electrostatic powder paint. Nitrogen is used to provide the initial gas pressure in closed expansion tanks. During pressure adjustment, air can be used instead of nitrogen.
 <h2>Maintenance of Closed Expansion Tanks</h2>
Periodic maintenance of closed expansion tanks should not be neglected and must be performed at regular intervals, as routine problems may occur due to air loss. On average, routine maintenance should be done every 2–3 months. This significantly increases the lifespan of the tank. Another maintenance issue is leakage. If there is no air in the closed expansion tank, water begins to accumulate, which may eventually lead to water leakage. Once the tank is punctured, it cannot be repaired; replacement is the only option, which can be costly.

Closed expansion tanks are a standard component not only in heating systems but also in booster pump installations, which contributes to their popularity. They are designed with diaphragm membranes and are used exclusively in closed-loop heating systems. Balloon-membrane closed expansion tanks are also available, in which water never touches the steel tank and always remains inside the membrane. A properly selected closed expansion tank prevents sudden pressure changes, significantly extending the lifespan of the pump.

Closed expansion tanks also prevent heat loss in pipes, ensure more balanced heating of radiators, reduce labor costs, and minimize corrosion.
 <h2>Calculation Processes for Closed Expansion Tanks</h2> Closed expansion tanks are notable not only for their benefits but also for their superior performance and efficiency. These tanks are highly sensitive equipment, so calculations must be approached carefully. Several criteria must be considered when calculating a closed expansion tank.

It is important to note that expansion tanks vary in size depending on the characteristics of the pump systems, ranging from 2 liters to 5,000 liters. Tanks can be horizontal, vertical, or spherical. Before calculation, the height of the installation area is a crucial factor, as it affects the tank’s resistance to pressure. In humid environments, stainless steel tanks should be preferred. Key parameters in calculations include pressure class, initial gas pressure, and volume. Pressure class and volume calculations require separate formulas. For example, water volume can be calculated using the formula:
 Vs = Q × f Where Vs represents the total water volume in the system in liters, and Vg represents the expanding water volume. O is the nominal heating level of the boiler, and f represents the heat emission force of the heaters. The volume of expanding water is calculated using:
 Vg = Vs × n
Closed expansion tanks are vital for protecting the system. During peak periods when the tank is insufficient, a certain amount of water can be discharged to reduce system pressure. The tank compensates for volumetric changes in heating water, balancing flow variations.

In heating systems or certain installations, a well-chosen and properly calculated closed expansion tank ensures the longevity of other system components, including pumps. Closed systems also reduce corrosion by eliminating air contact and prevent water loss. Heat losses in pipes are significantly reduced with closed expansion tanks.

To calculate closed expansion tanks, the total water volume must first be determined, including water in boilers, heaters, and pipes. This information can also be obtained from manufacturers’ catalogs.

For tank volume calculation, the following formula is used:
 Vgd,k = Vd + Vs × E × [(Ptü + 1) / (Ptü – Pgö)] Where: Vgd: Tank volume in liters
Vs: Water volume in the installationE: Water expansion ratioPtü: Maximum operating pressure of the system
Pgö: Initial pressure of the tank
Vd: Water level in the tank when the system is cold
For nominal tank volume: Vn = Vv + Ve Accurate calculation of these parameters ensures smooth operation of the expansion tank.

During calculation, the operating pressure of components such as valves, radiators, and pumps must be at least 10% higher than the safety valve opening pressure. Minor water loss may occur initially due to trapped air, leakage, or small gaps.

In some European countries, solutions like pressure switches or solenoid valves are used to prevent water loss, but these are considered risky in Turkey due to frequent sudden water cuts in large cities.

The expanding water volume in the system can be calculated as:
 Ve = n × Va / 100 Where Va is the water volume in the system, and n is the temperature-proportional expansion coefficient. The initial pressure of the closed expansion tank should be:
 Po = Ps + Pd Where Ps reflects static pressure, and Pd represents the effective pressure of water vapor.

There are two classical methods for calculating expansion tanks. The first involves calculating water levels in pipes or devices and multiplying by the expansion coefficient. The second estimates system needs and applies a safety factor. The first method is more precise for large systems, while the second is simpler for smaller ones.

Water level calculations, fixed-pressure and safety valve calculations, normal water volume, and normal expansion tank volume are all calculated using separate formulas. Closed expansion tank calculations must be performed professionally for accurate results.

Closed expansion tanks, which occupy a special place among expansion tanks, are extremely attractive in terms of lifespan and durability.
